I need help drawing this on paper using ladder logic and this set of inputs and outputs

And this description

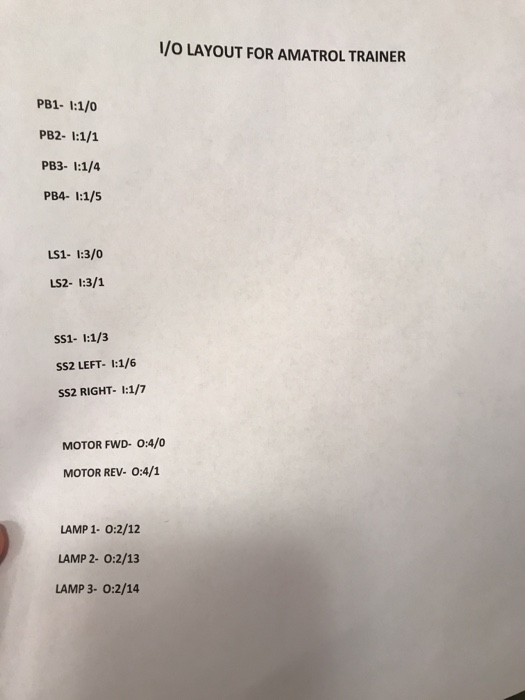

I/O LAYOUT FOR AMATROL TRAINER PB1- 1:1/0 PB2- 1:1/1 PB3- 1:1/4 PB4- 1:1/5 LS1- 1:3/0 LS2- 1:3/1 SS1- 1:1/3 SS2 LEFT- 1:1/6 SS2 RIGHT- 1:1/7 MOTOR FWD. 0:4/0 MOTOR REV- 0:4/1 LAMP 1- 0:2/12 LAMP 2- 0:2/13 LAMP 3- 0:2/14 Open a new file and design a PLC program that when a PB-1 and PB3 are pressed and released the motor will travel in the forward direction until it makes LS1 and then travel in the reverse direction until it makes LS2. This action will continue until SS2 is turned to the center position or the Stop button is pressed Lamp 1 will turn on when the motor is running in the forward direction. Lamp 2 will turn on when the motor is running in the reverse direction. SS1 will disable both lamps. The stop button will stop all motion. Remember to establish communications using RS Linx and Configure the I/O using RS Logix 500
