Question: I NEED HELP ON A , B , AND C PLEASE AND THANK YOU! Problem 4 ( 2 0 pts ) Consider the 2 -

I NEED HELP ON A,B, AND C PLEASE AND THANK YOU!

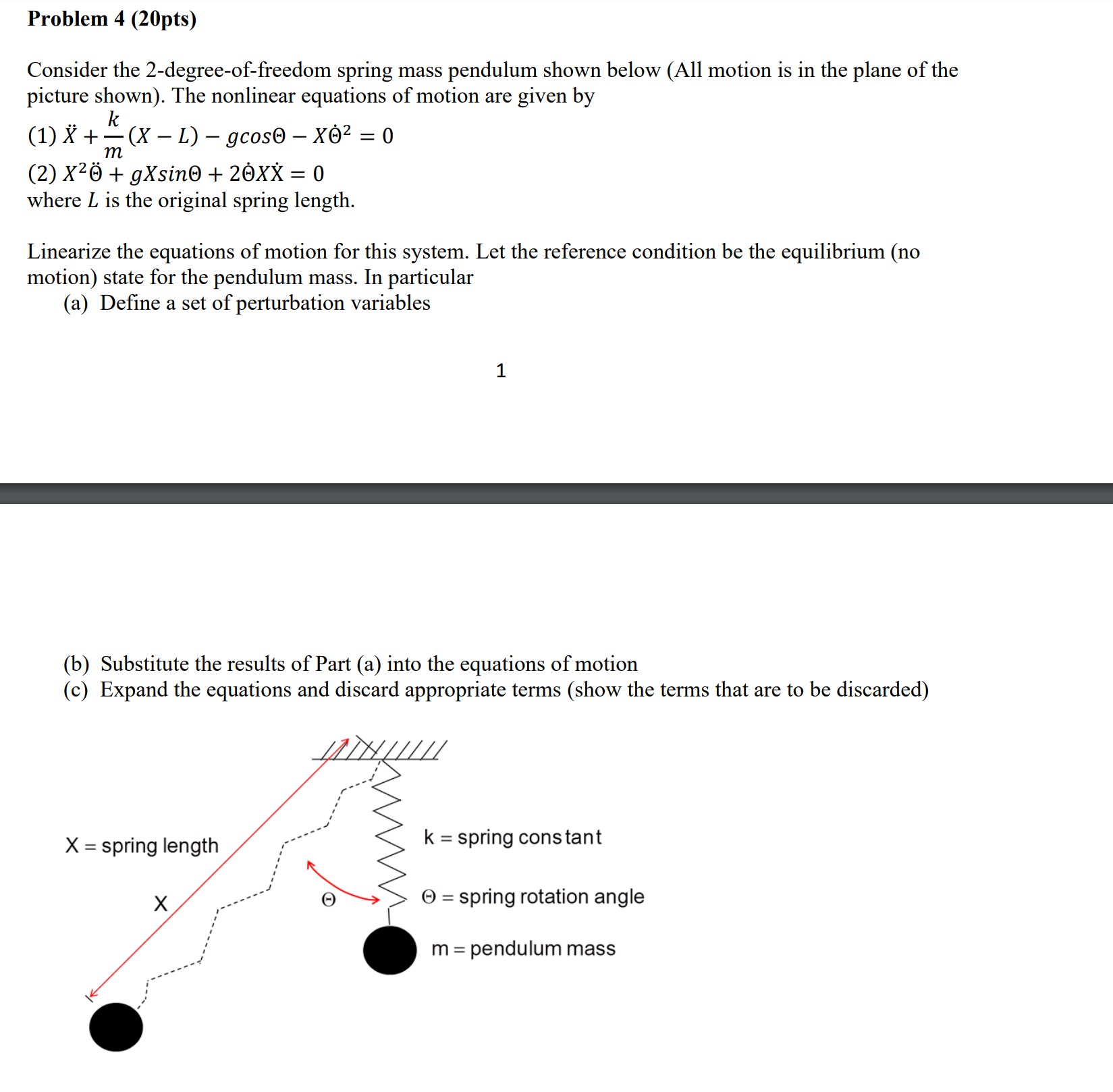

Problem 4(20pts)
Consider the 2-degree-of-freedom spring mass pendulum shown below (All motion is in the plane of the
picture shown). The nonlinear equations of motion are given by
(1)x+km(x-L)-gcos-x?2=0
(2)x2+gxsin+2xx=0
where L is the original spring length.
Linearize the equations of motion for this system. Let the reference condition be the equilibrium (no
motion) state for the pendulum mass. In particular
(a) Define a set of perturbation variables
(b) Substitute the results of Part (a) into the equations of motion
(c) Expand the equations and discard appropriate terms (show the terms that are to be discarded)
I NEED HELP ON A , B , AND C PLEASE AND THANK
