Question: I need help underdstnading this RTL problem set. Any help is appreciated, but explanations as to why each answer is what it is would be

I need help underdstnading this RTL problem set. Any help is appreciated, but explanations as to why each answer is what it is would be even more appreciated

I need help underdstnading this RTL problem set. Any help is appreciated, but explanations as to why each answer is what it is would

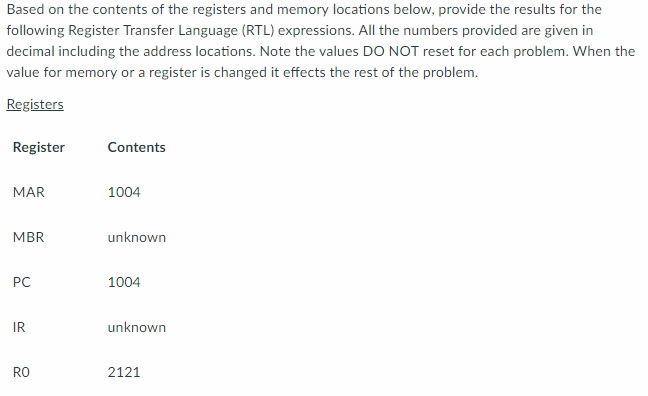

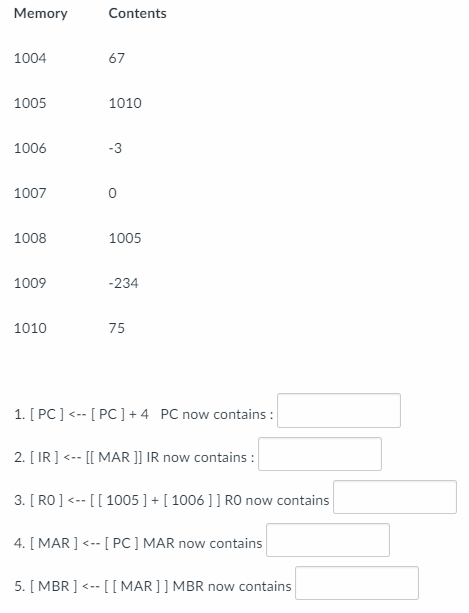

Based on the contents of the registers and memory locations below, provide the results for the following Register Transfer Language (RTL) expressions. All the numbers provided are given in decimal including the address locations. Note the values DO NOT reset for each problem. When the value for memory or a register is changed it effects the rest of the problem Registers Register Contents MAR 1004 MBR unknown PC 1004 IR unknown RO 2121

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
