Question: i need help with this 1) What are the values of the currents shown? 4 V I , : ? A A I3 = ?

i need help with this 1) What are the values of the currents shown? 4 V I , : ? A A I3

i need help with this

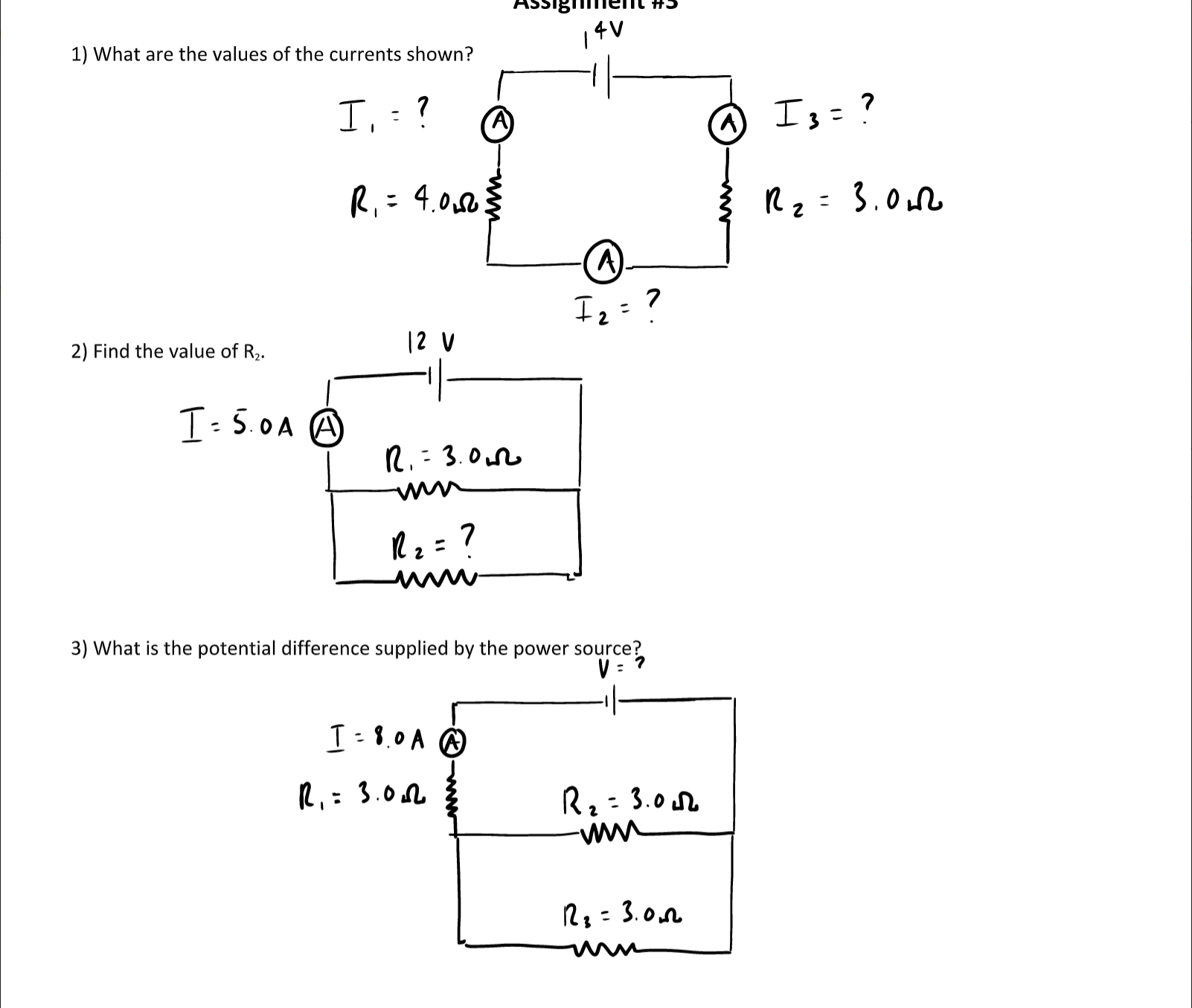

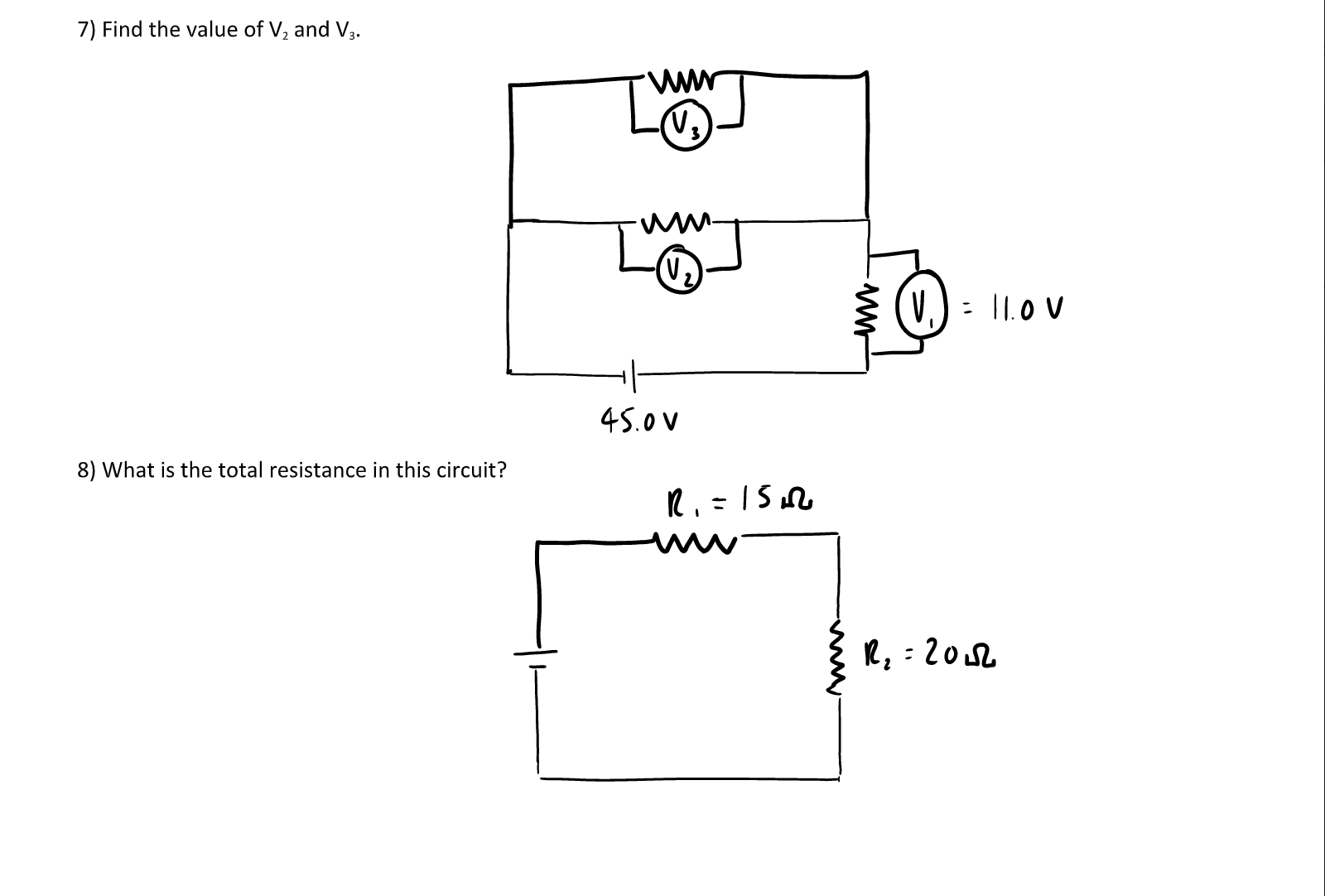

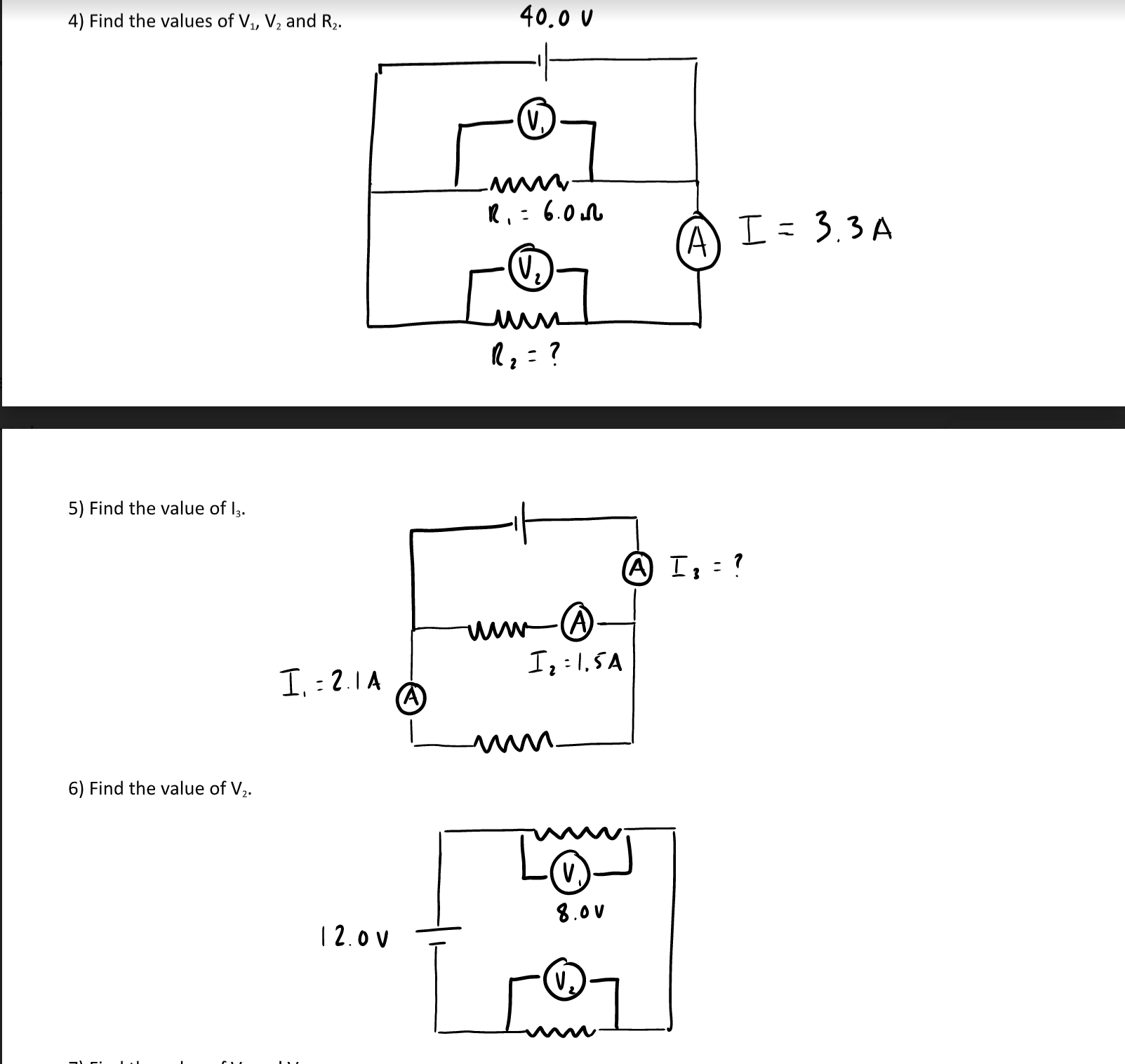

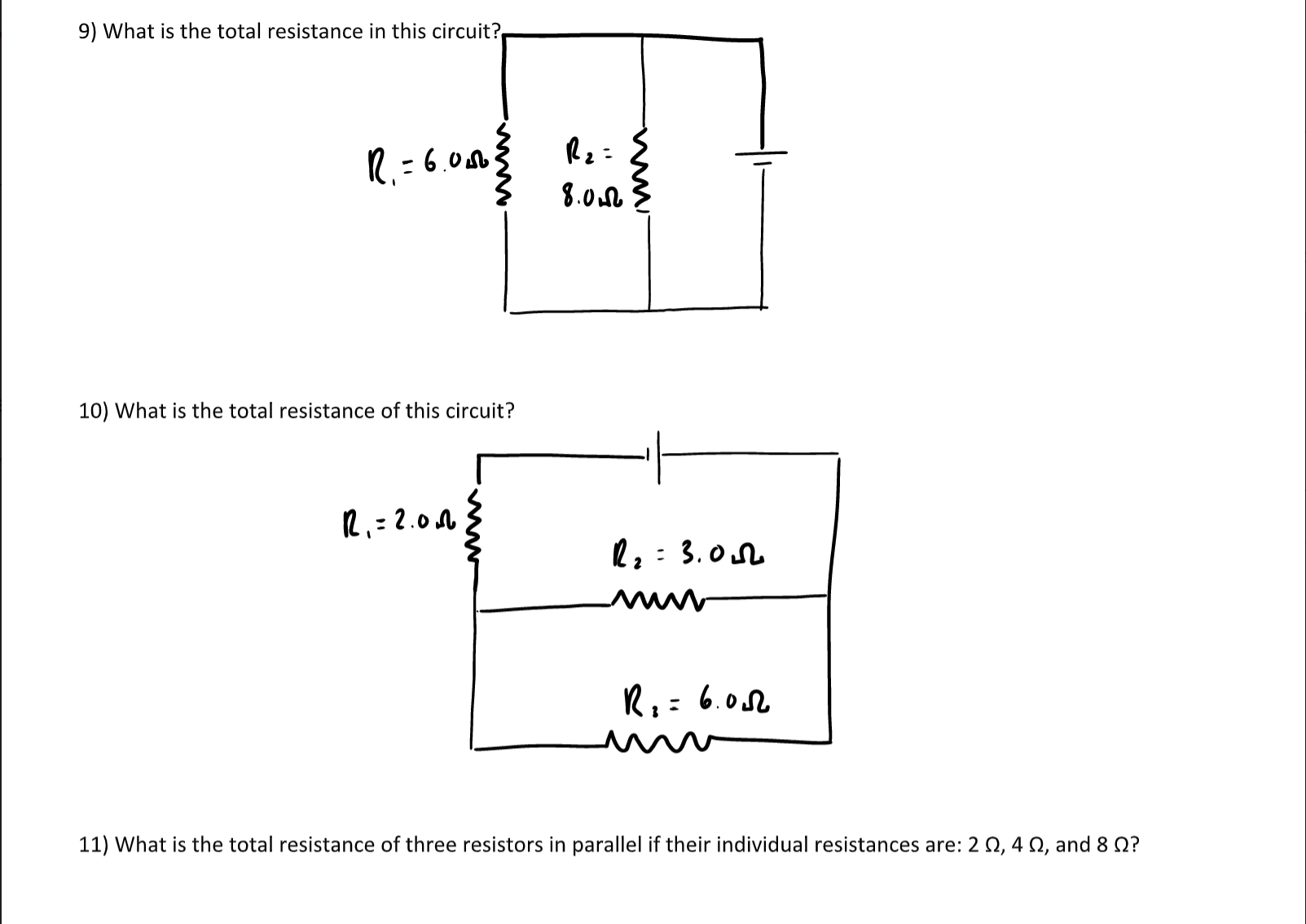

1) What are the values of the currents shown? 4 V I , : ? A A I3 = ? R2 : 3.0.12 (A I , = ? 2) Find the value of R2. 12 V I : 5.0A A R. : 3.0 . R 2 = 7 3) What is the potential difference supplied by the power source? V : T - 80 A A R. = 3.0.1 R 2 : 3.0.12 1 3 = 3. 0.n4) Find the values of V1, V2 and R2. 40, 0 U 5) Find the value of Is. I I: : ? 6) Find the value of V2. 7) Find the value of V2 and V3. 33\" 45.0v 8) What is the total resistance in this circuit? [15.11 9) What is the total resistance in this circuit? 10) What is the total resistance of this circuit? \"52.011: 11) What is the total resistance of three resistors in parallel if their individual resistances are: 2 Q, 4 Q, and 8

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
