I need step by step on solution, please no cursive. Written on page, digital is no good.

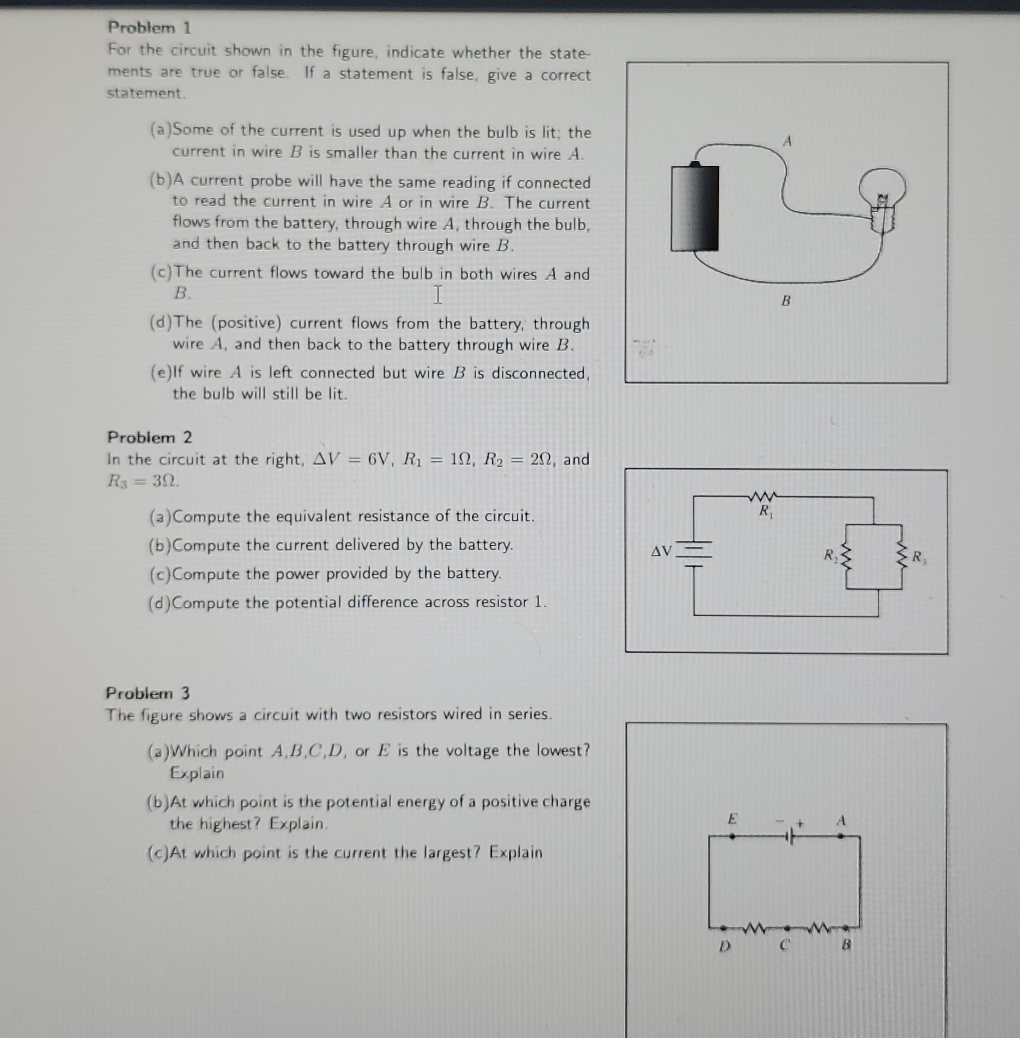

Problem 1 For the circuit shown in the figure, indicate whether the state- ments are true or false. If a statement is false, give a correct statement (a ) Some of the current is used up when the bulb is lit; the current in wire B is smaller than the current in wire A. (b)A current probe will have the same reading if connected to read the current in wire A or in wire B. The current flows from the battery, through wire A, through the bulb, and then back to the battery through wire B. (c) The current flows toward the bulb in both wires A and B. B (d) The (positive) current flows from the battery, through wire A, and then back to the battery through wire B. (e) If wire A is left connected but wire B is disconnected, the bulb will still be lit. Problem 2 In the circuit at the right, AV = 6V, R1 = 10, R2 = 20, and R3 = 30. (a) Compute the equivalent resistance of the circuit. (b) Compute the current delivered by the battery. AV R (c) Compute the power provided by the battery. (d) Compute the potential difference across resistor 1. Problem 3 The figure shows a circuit with two resistors wired in series. (a)Which point A, B.C. D, or E is the voltage the lowest? Explain (b) At which point is the potential energy of a positive charge the highest? Explain. (c)At which point is the current the largest? Explain B
