Question: I need the right solutions for these two questions: 8 . An electronic circuit board has six resistors wired in series. The average reliability for

I need the right solutions for these two questions:

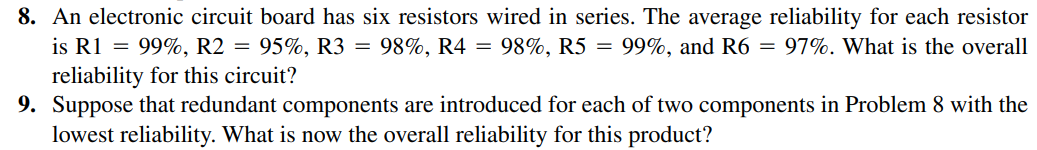

8. An electronic circuit board has six resistors wired in series. The average reliability for each resistor is R1=99%,R2=95%,R3=98%,R4=98%,R5=99%, and R6=97%. What is the overall reliability for this circuit?
9. Suppose that redundant components are introduced for each of two components in Problem 8 with the lowest reliability. What is now the overall reliability for this product?
I need the right solutions for these two questions: 8. An

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
