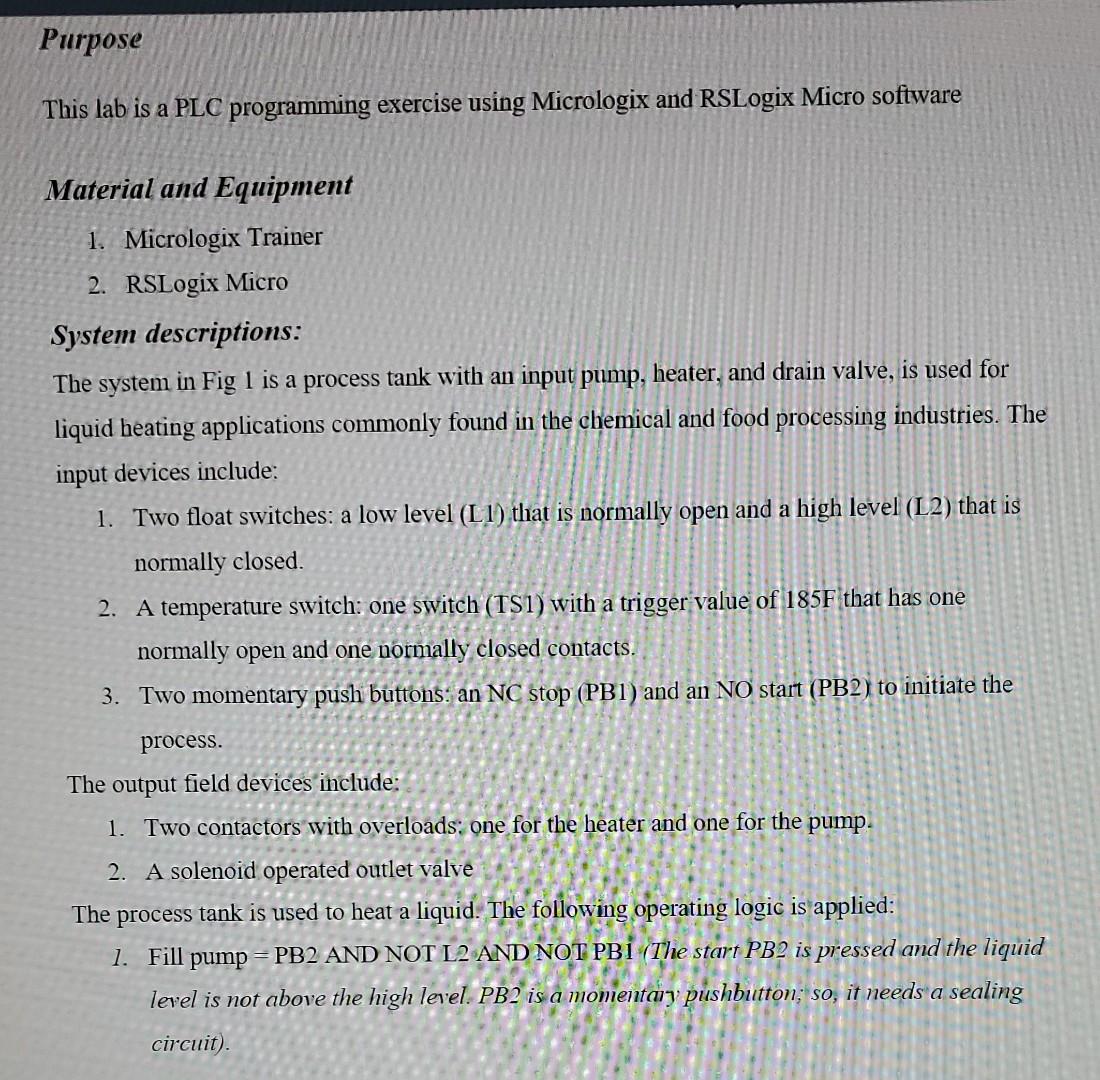

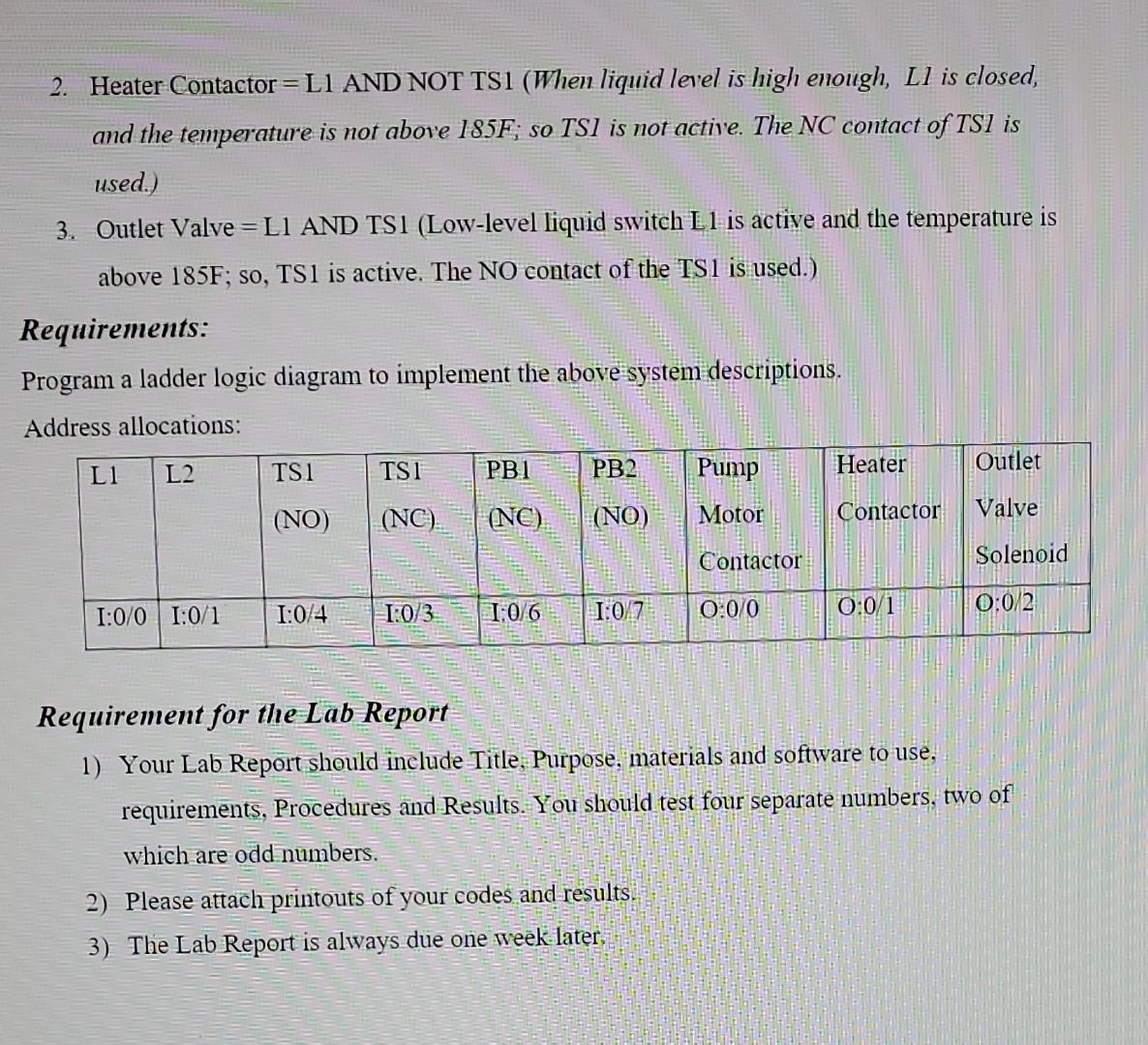

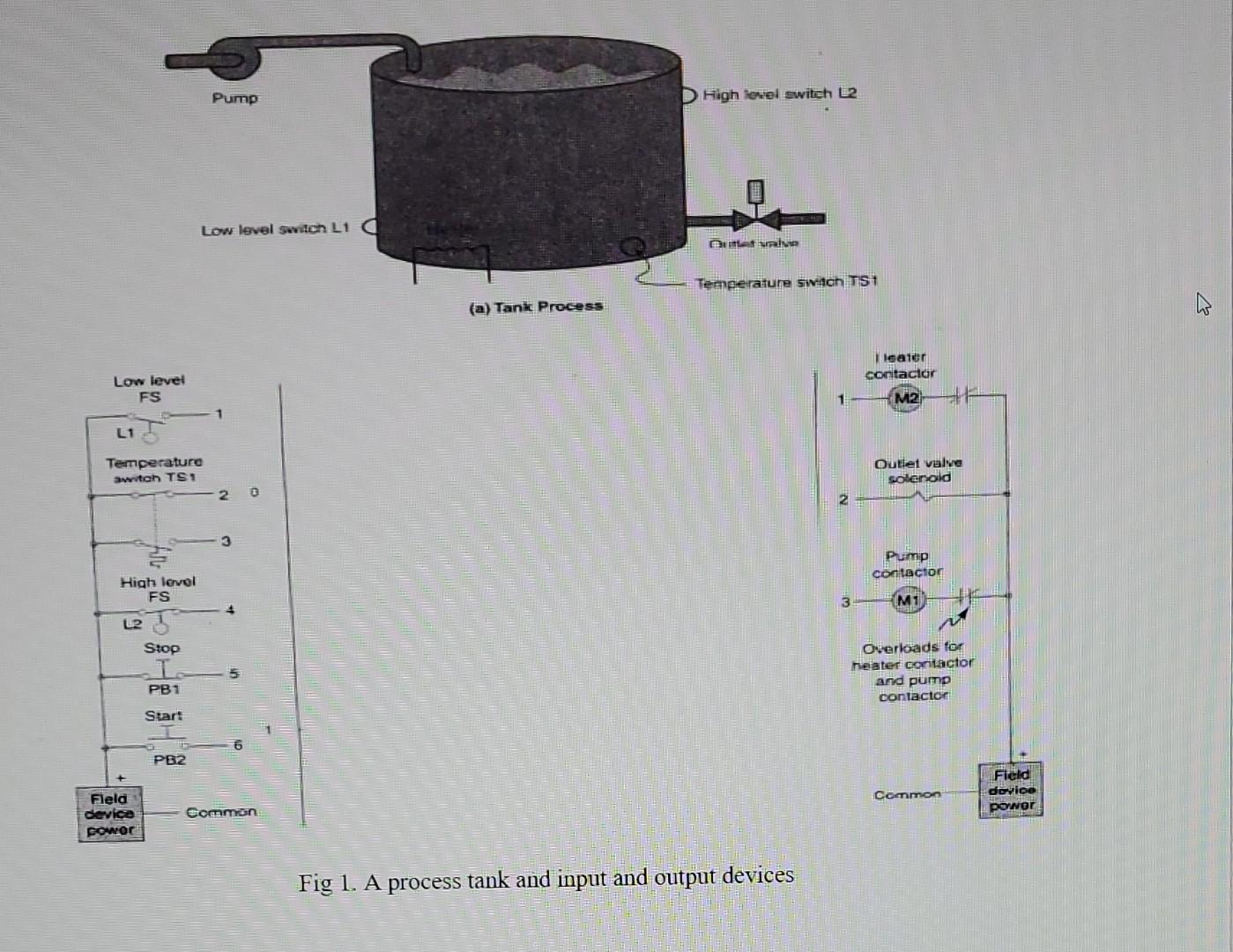

Purpose This lab is a PLC programming exercise using Micrologix and RSLogix Micro software Material and Equipment 1. Micrologix Trainer 2. RSLogix Micro System descriptions: The system in Fig 1 is a process tank with an input pump, heater, and drain valve, is used for liquid heating applications commonly found in the chemical and food processing industries. The input devices include: 1. Two float switches: a low level (L1) that is normally open and a high level (L2) that is normally closed. 2. A temperature switch: one switch (TS1) with a trigger value of 185F that has one normally open and one normally closed contacts. 3. Two momentary push buttons: an NC stop (PB1) and an NO start (PB2) to initiate the process. The output field devices include: 1. Two contactors with overloads: one for the heater and one for the pump. 2. A solenoid operated outlet valve The process tank is used to heat a liquid. The following operating logic is applied: 1. Fill pump =PB2AND NOT L2 AND NOT PBI (The start PB2 is pressed and the liquid level is not above the high level. PB22 is a momentany pushbutton; so, it needs a sealing circuit). 2. Heater Contactor = L1 AND NOT TS1 (When liquid level is high enough, Ll is closed, and the temperature is not above 185F;so sSI is not active. The NC contact of TSI is used.) 3. Outlet Valve = L1 AND TS 1 (Low-level liquid switch L1 is active and the temperature is above 185F; so, TS 1 is active. The NO contact of the TS1 is used.) Requirements: Program a ladder logic diagram to implement the above system descriptions. Addracs allocations: Requirement for the Lab Report 1) Your Lab Report should include Title, Purpose, materials and software to use, requirements, Procedures and Results. You should test four separate numbers, two of which are odd numbers. 2) Please attach printouts of your codes and results. 3) The Lab Report is always due one week later. (a) Tank Process Fig 1. A process tank and input and output devices
