Question: I only need help with question 2D, 2E and 2F please. Refer to the following diagram, where a switch with ports 1 to 8 is

I only need help with question 2D, 2E and 2F please.

I only need help with question 2D, 2E and 2F please. Refer to the following diagram, where a switch with ports 1 to 8 is connected to devices with MAC addresses A to H. 1. Port

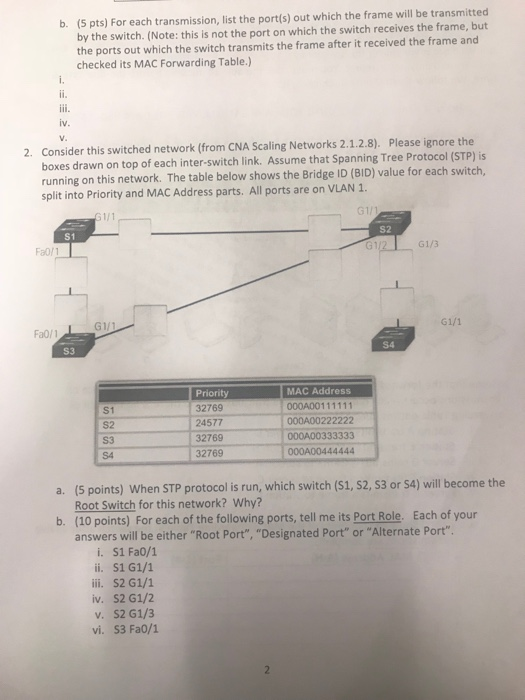

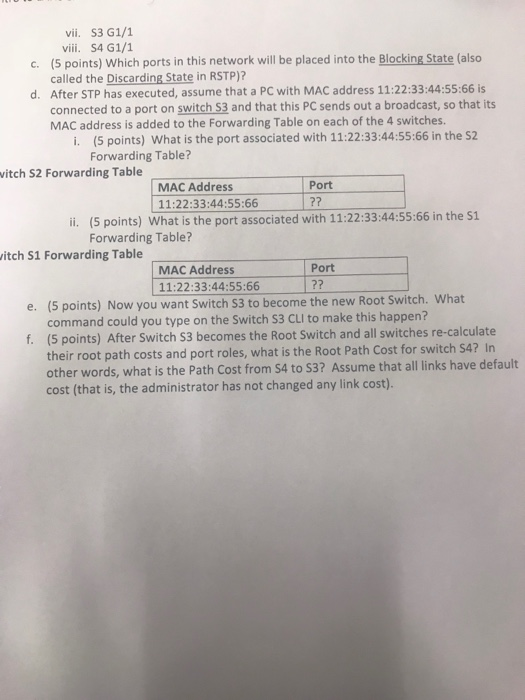

Refer to the following diagram, where a switch with ports 1 to 8 is connected to devices with MAC addresses A to H. 1. Port Number Devices Assume that the forwarding table is initially empty and that the following sequence of transmissions occurs (each is a one-way frame transmission and there is no timeout of Forwarding Table entries during this time) i. Station A transmits a frame to server D ii. Station E transmits a frame to station H ii. Server D transmits a frame to station A iv. Station F transmits a frame to server C v. Server D transmits a frame to station F (5 pts) Show the contents of the MAC Forwarding Table in the switch after all five transmissions are complete. a. MAC Address (A-H) Port (1-8) Refer to the following diagram, where a switch with ports 1 to 8 is connected to devices with MAC addresses A to H. 1. Port Number Devices Assume that the forwarding table is initially empty and that the following sequence of transmissions occurs (each is a one-way frame transmission and there is no timeout of Forwarding Table entries during this time) i. Station A transmits a frame to server D ii. Station E transmits a frame to station H ii. Server D transmits a frame to station A iv. Station F transmits a frame to server C v. Server D transmits a frame to station F (5 pts) Show the contents of the MAC Forwarding Table in the switch after all five transmissions are complete. a. MAC Address (A-H) Port (1-8)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
