Question: I should find the theoretical V values, initial guesses for capacitor polarities loops chosen island chosen Table 1: multi-loop circuit A C1 H C3 C2

I should find the theoretical V values, initial guesses for capacitor polarities loops chosen island chosen

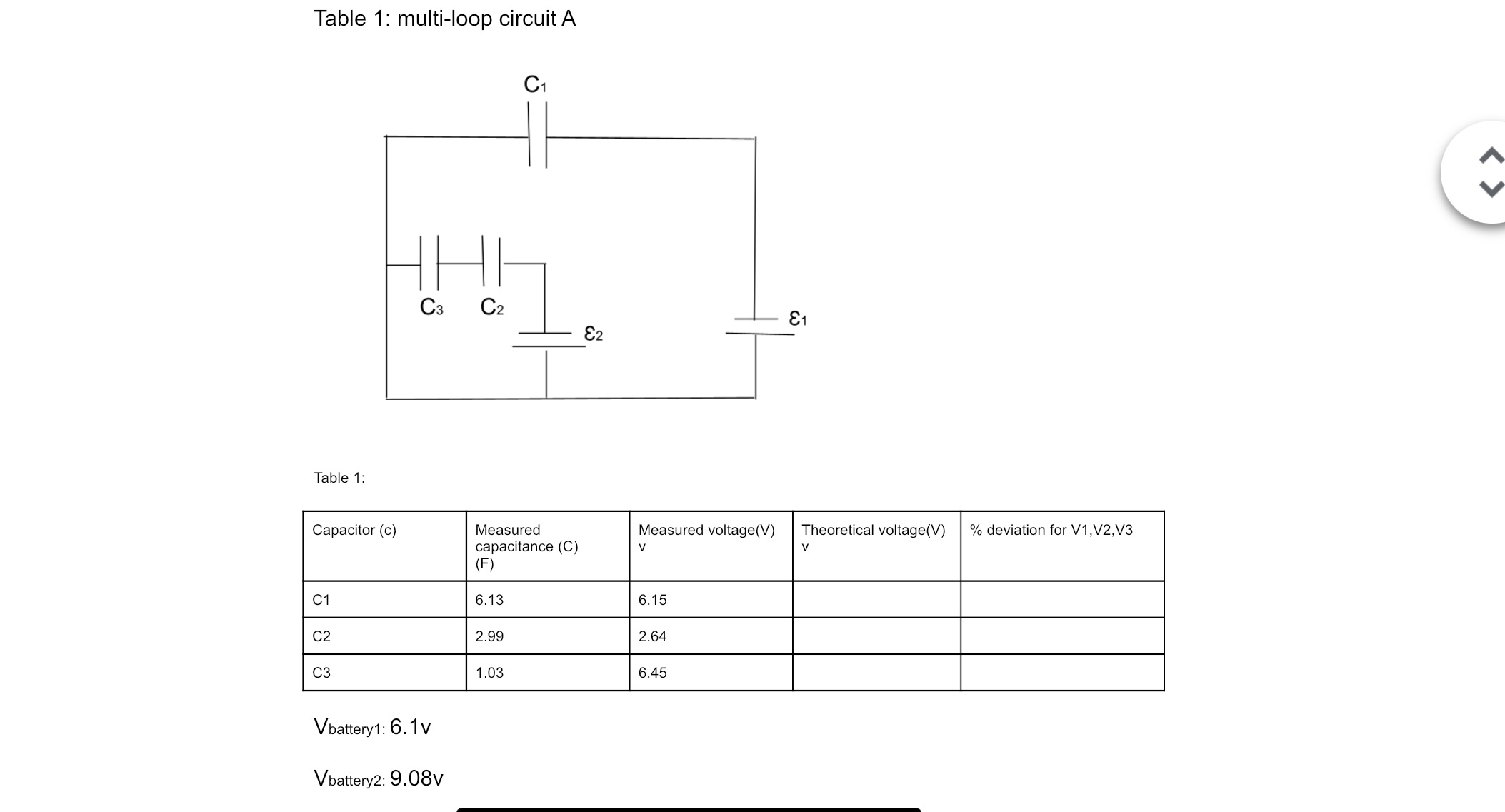

Table 1: multi-loop circuit A C1 H C3 C2 13 82 Table 1: Capacitor (c) Measured Measured voltage(V) Theoretical voltage(V) % deviation for V1, V2,V3 capacitance (C) V V (F) C1 6.13 6.15 C2 2.99 2.64 C3 1.03 6.45 Vbattery 1: 6. 1v Vbattery2: 9.08v

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

I should find the theoretical V values, initial guesses for capacitor polarities loops chosen island chosenVbattery1: 6.1vVbattery2: 9.08v Table 2: multi-loop circuit B C1 C2 C3 13 Table 2: Capacitor...

Hello, this is a part in my lab which I don't really understand how to solve. I need your help for the following things:a) Finding V1, V2, and V3.2) showing the followings on the diagram:? initial...

This is one of the tables in my lab report that I need to complete. The values for C1, C2, and C3 are given in the table. The batteries voltages are also given at the end of my explanations. This is...

3 simultaneous equations:2 loop rules + conservation of chargeVbattery1: 6.1vVbattery2: 9.08vI need the following informations for the given circuit:a) To calculate V1, V2, and V3. b) To show the...

This is one of the tables in my lab report that I need to complete. The values for C1, C2, and C3 are given in the table. The batteries voltages are also given under the table. This is a polarized...

3 simultaneous equations: 2 loop rules + conservation of charge Vbattery1: 6.1v Vbattery2: 9.08v I need the following informations for the given circuit: a) To calculate V1, V2, and V3. b) To show...
