Question: I should find the theoretical V values, initial guesses for capacitor polarities loops chosen island chosenVbattery1: 6.1vVbattery2: 9.08v Table 2: multi-loop circuit B C1 C2

I should find the theoretical V values, initial guesses for capacitor polarities loops chosen island chosenVbattery1: 6.1vVbattery2: 9.08v

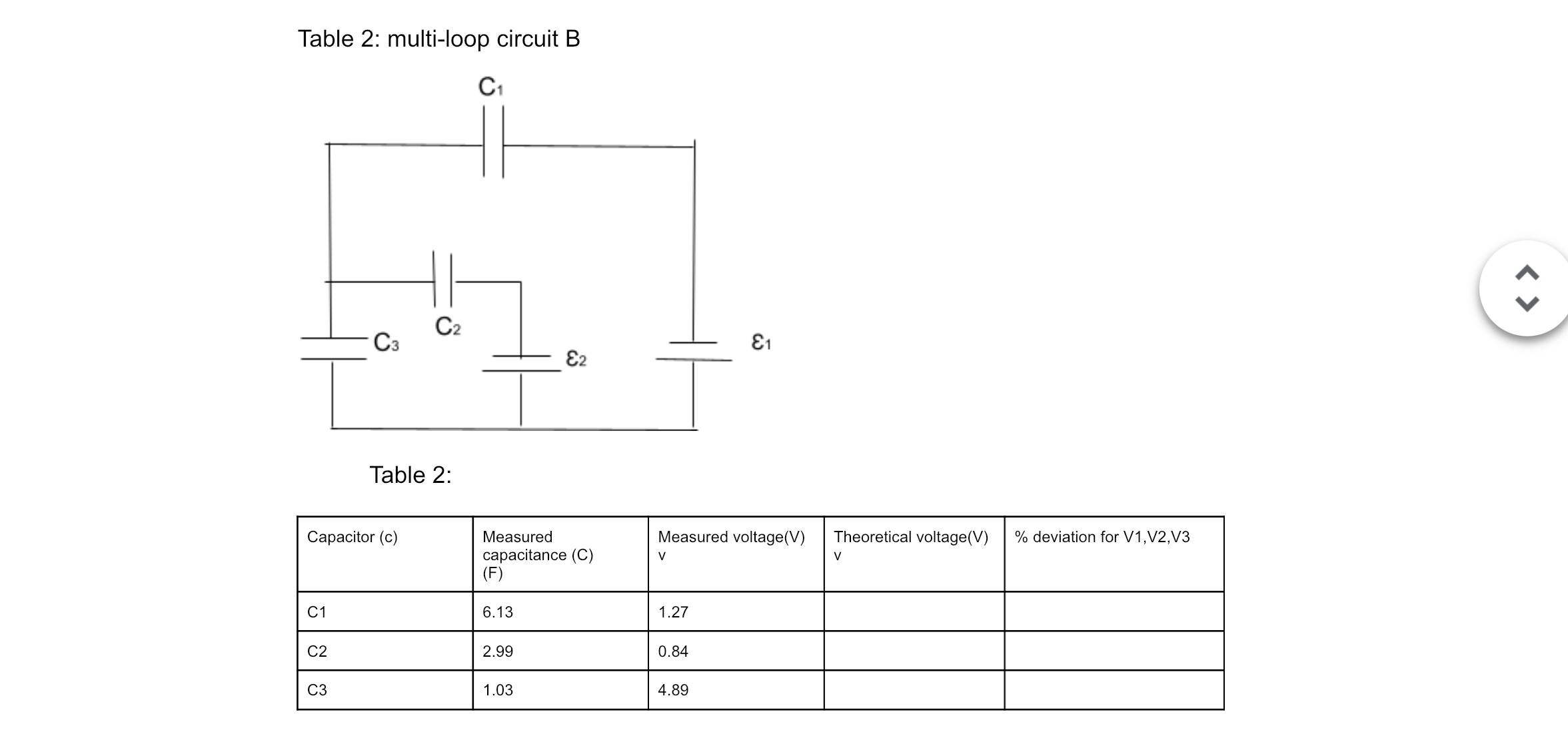

Table 2: multi-loop circuit B C1 C2 C3 13 Table 2: Capacitor (c) Measured Measured voltage(V) Theoretical voltage(V) % deviation for V1,V2,V3 capacitance (C) V V (F) C1 6.13 1.27 C2 2.99 0.84 C3 1.03 4.89

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock

Students Have Also Explored These Related Physics Questions!

I should find the theoretical V values, initial guesses for capacitor polarities loops chosen island chosen Table 1: multi-loop circuit A C1 H C3 C2 13 82 Table 1: Capacitor (c) Measured Measured...

Hello, this is a part in my lab which I don't really understand how to solve. I need your help for the following things:a) Finding V1, V2, and V3.2) showing the followings on the diagram:? initial...

This is one of the tables in my lab report that I need to complete. The values for C1, C2, and C3 are given in the table. The batteries voltages are also given at the end of my explanations. This is...

This is one of the tables in my lab report that I need to complete. The values for C1, C2, and C3 are given in the table. The batteries voltages are also given under the table. This is a polarized...

3 simultaneous equations: 2 loop rules + conservation of charge Vbattery1: 6.1v Vbattery2: 9.08v I need the following informations for the given circuit: a) To calculate V1, V2, and V3. b) To show...

3 simultaneous equations:2 loop rules + conservation of chargeVbattery1: 6.1vVbattery2: 9.08vI need the following informations for the given circuit:a) To calculate V1, V2, and V3. b) To show the...
