Question: I was learning about dials and I was confused about this question. I have a midterm coming out and I was doing A practice test

I was learning about dials and I was confused about this question. I have a midterm coming out and I was doing A practice test online .

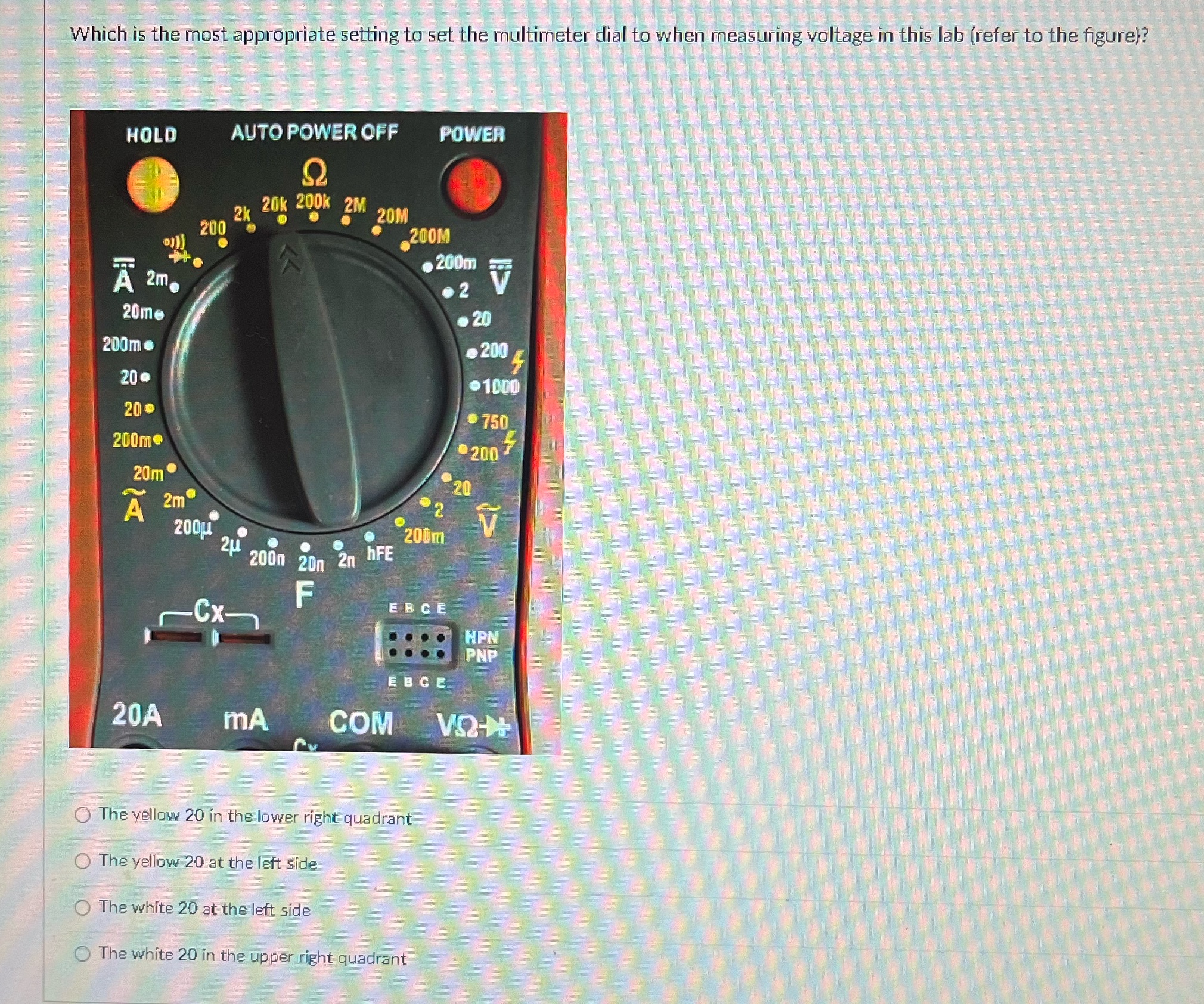

Which is the most appropriate setting to set the multimeter dial to when measuring voltage in this lab (refer to the figure)? HOLD AUTO POWER OFF POWER Q 2k 20k 200k 2M 20M 200 200M . 200m A 2m. . 2 V 20me . 20 200m . . 200 20. .1000 20 . 750 200m. . 200 20m . 20 A 2m 20OH V 200m 21 200n 20n 2n hFE F Cx- EBCE PNP EBCE 20A mA COM VO++ The yellow 20 in the lower right quadrant The yellow 20 at the left side The white 20 at the left side The white 20 in the upper right quadrant
