Question: i will attach a packet trace file please u apply all this queiquestion on it start of the ipes please solve it to me Open

i will attach a packet trace file please u apply all this queiquestion on it start of the ipes please solve it to me

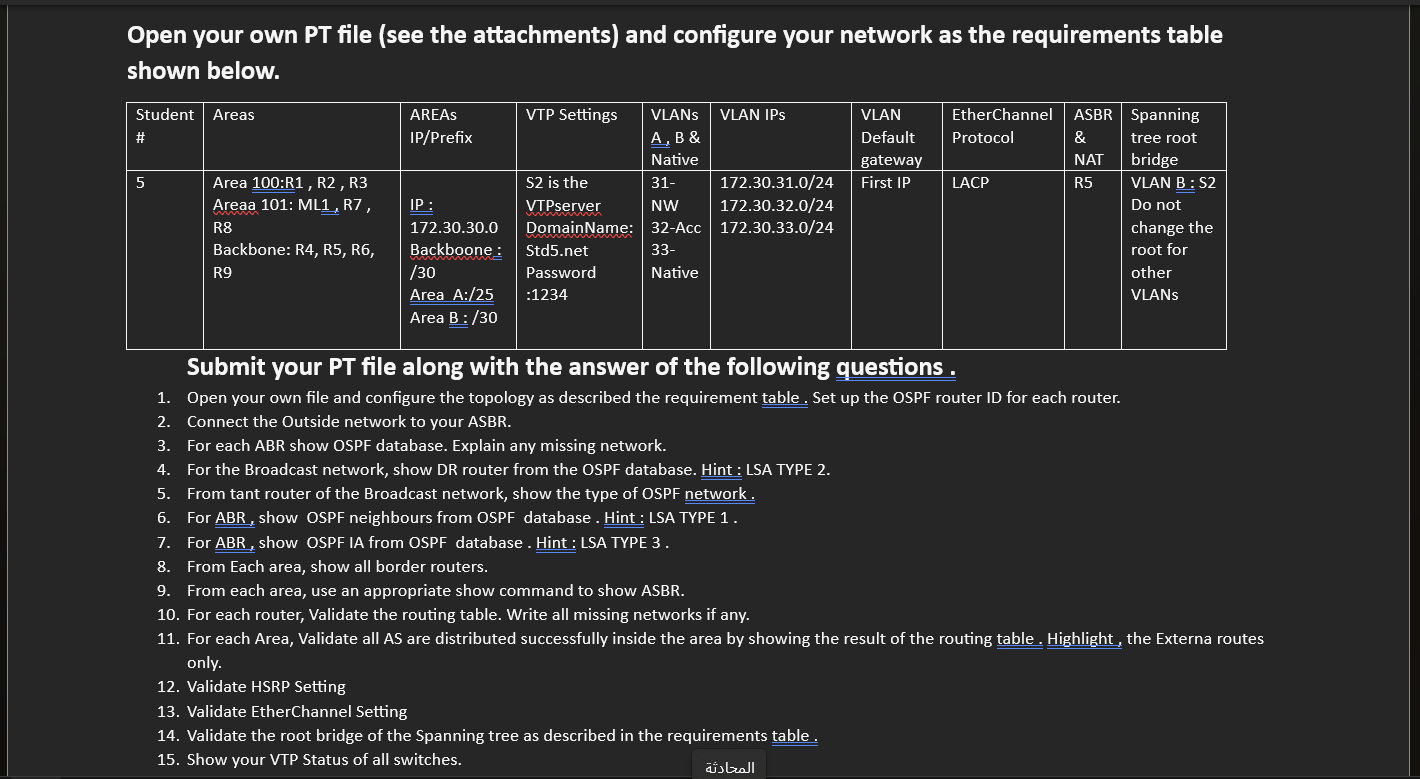

Open your own PT file (see the attachments) and configure your network as the requirements table shown below. Submit your PT file along with the answer of the following questions . 1. Open your own file and configure the topology as described the requirement table. Set up the OSPF router ID for each router. 2. Connect the Outside network to your ASBR. 3. For each ABR show OSPF database. Explain any missing network. 4. For the Broadcast network, show DR router from the OSPF database. Hint : LSA TYPE 2. 5. From tant router of the Broadcast network, show the type of OSPF network. 6. For ABR, show OSPF neighbours from OSPF database . Hint: LSA TYPE 1. 7. For ABR, show OSPF IA from OSPF database . Hint : LSA TYPE 3 . 8. From Each area, show all border routers. 9. From each area, use an appropriate show command to show ASBR. 10. For each router, Validate the routing table. Write all missing networks if any. 11. For each Area, Validate all AS are distributed successfully inside the area by showing the result of the routing table. Highlight, the Externa routes only. 12. Validate HSRP Setting 13. Validate EtherChannel Setting 14. Validate the root bridge of the Spanning tree as described in the requirements table. 15. Show your VTP Status of all switches
Step by Step Solution
There are 3 Steps involved in it
Get step-by-step solutions from verified subject matter experts
