Question: If R 1 = 1 0 . 0 k , V s = 5 . 0 V . Suppose R 2 is sensor whose resistance

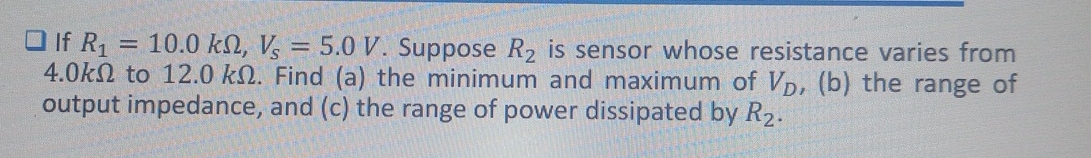

If R1=10.0k,Vs=5.0V. Suppose R2 is sensor whose resistance varies from 4.0k to 12.0k. Find (a) the minimum and maximum of VD,(b) the range of output impedance, and (c) the range of power dissipated by R2.
If R 1 = 1 0 . 0 k , V s = 5 . 0 V . Suppose R 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
