Question: If the pressure difference between points 1 and 2 in the pipe system shown below is 2 0 psi, what will be the flow rate?

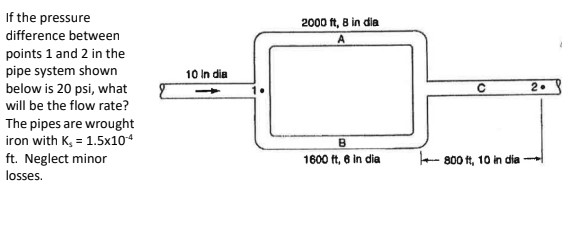

If the pressure difference between points 1 and 2 in the pipe system shown below is 20 psi, what will be the flow rate? The pipes are wrought iron with Ks=1.510-4ft. Neglect minor losses. Assume water @20C.
If the pressure difference between points 1 and 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

If the pressure difference between points 1 and 2 in the pipe system shown below is 2 0 psi, what will be the flow rate? The pipes are wrought iron with Ks = 1 . 5 x 1 0 - 4 ft . Neglect minor losses.

Q:

4 . 5 . 3 The pressure difference between points 1 and 2 in the series pipe system in Figure P 4 . 5 . 3 is 1 5 psi . All the pipes are galvanized iron with roughness value of 0 . 0 0 0 5 ft . The...

Q:

The pressure difference between points 1 and 2 in the series pipe system of the figure below is 2 0 . All the pipes are galvanized iron with roughness value of 0 . 0 0 0 5 f t . The loss coefficient...

Q:

v | Y 454 If the pressure difference between points 1 and 2 in Figure P4.5.4 is 25 psi, what will be the flow rate? The pipes are galvanized iron with k, = 0.0005 ft. Take v = 1.06 x 10 ft*/s and...

Q:

4 . 5 . 4 If the pressure difference between points 1 and 2 in Figure P 4 . 5 . 4 is 2 5 psi, what will be the flow rate? The pipes are galvanized iron with k s = 0 . 0 0 0 5 f t . Take v = 1 . 0 6 1...

Q:

[ 2 0 pts ] If the pressure difference between points 1 and 2 in Figure 5 is 2 4 psi, what is the flowrate? The pipes are galvanized iron with k s = 0 . 0 0 0 6 f t . Take v = 1 . 0 6 1 0 - 5 f t 2 s...

Q:

The linear flow rate of water with a pitot tube is measured according to the following correlation. Since the linear velocity in the center of the pipe is measured and V (average) /V (max) = 0.82 for...

Q:

PLS STEP BY STEP! The linear flow rate of water with a pitot tube is measured according to the following correlation. Since the linear velocity in the center of the pipe is measured and...

Q:

( a ) What is the formula for calculating the pressure due to the height of liquid? ( b ) Name two devices which make use of this formula when used for pressure measurement. ( c ) ( i ) In the...

Q:

7- (10 points) Water flows steadily through the Venturi tube shown. Consider in the passage shown that the losses are negligible. The area of section (1) is 20 cm- and that of section (2) is 10 cm....
