Question: v | Y 454 If the pressure difference between points 1 and 2 in Figure P4.5.4 is 25 psi, what will be the flow rate?

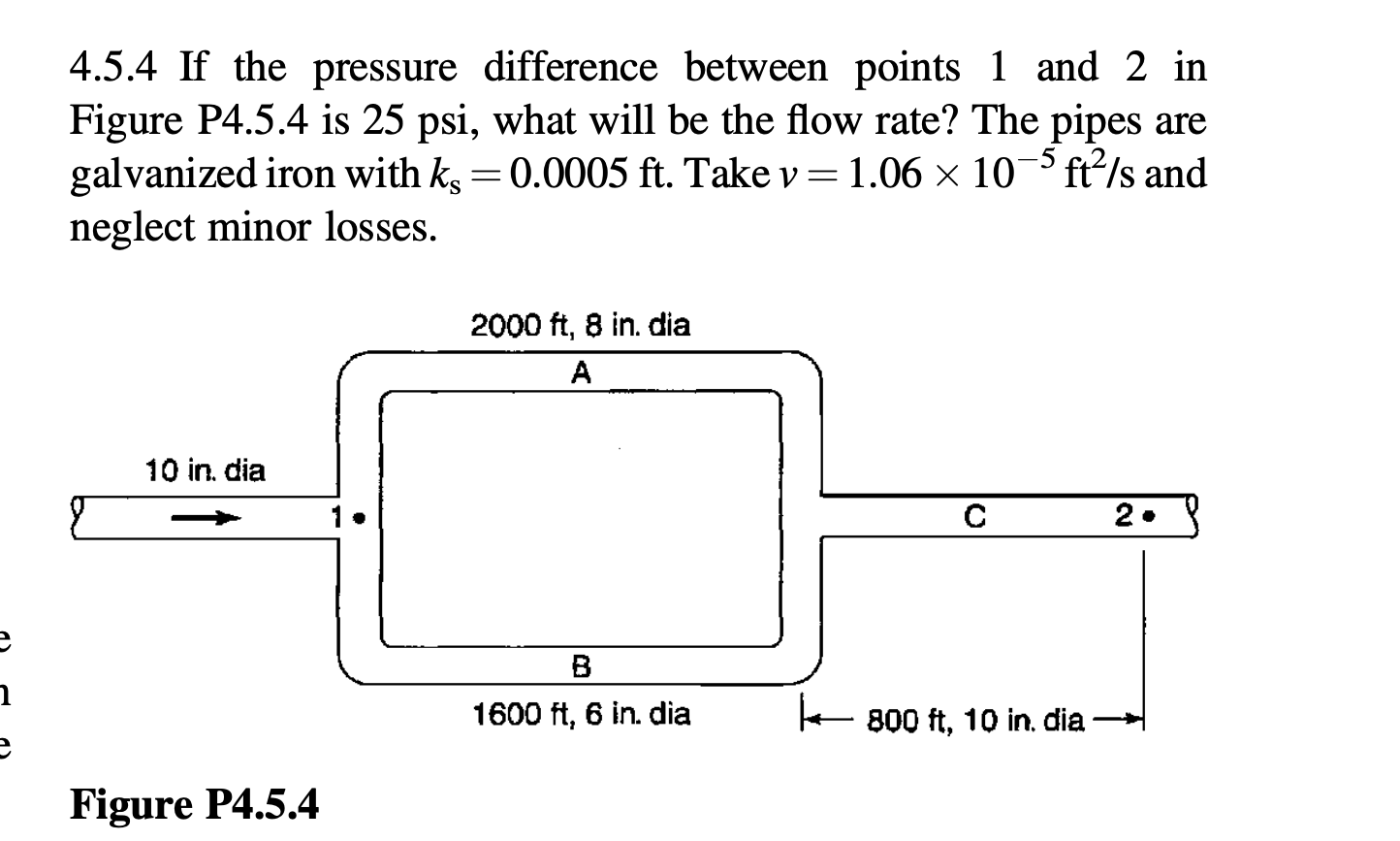

v | Y 454 If the pressure difference between points 1 and 2 in Figure P4.5.4 is 25 psi, what will be the flow rate? The pipes are galvanized iron with k, = 0.0005 ft. Take v = 1.06 x 10 ft*/s and neglect minor losses. 2000 ft, 8 in. dia 10 in. dia L l
