III. Task Description

$3-$Way Intersection Traffic Light Controller

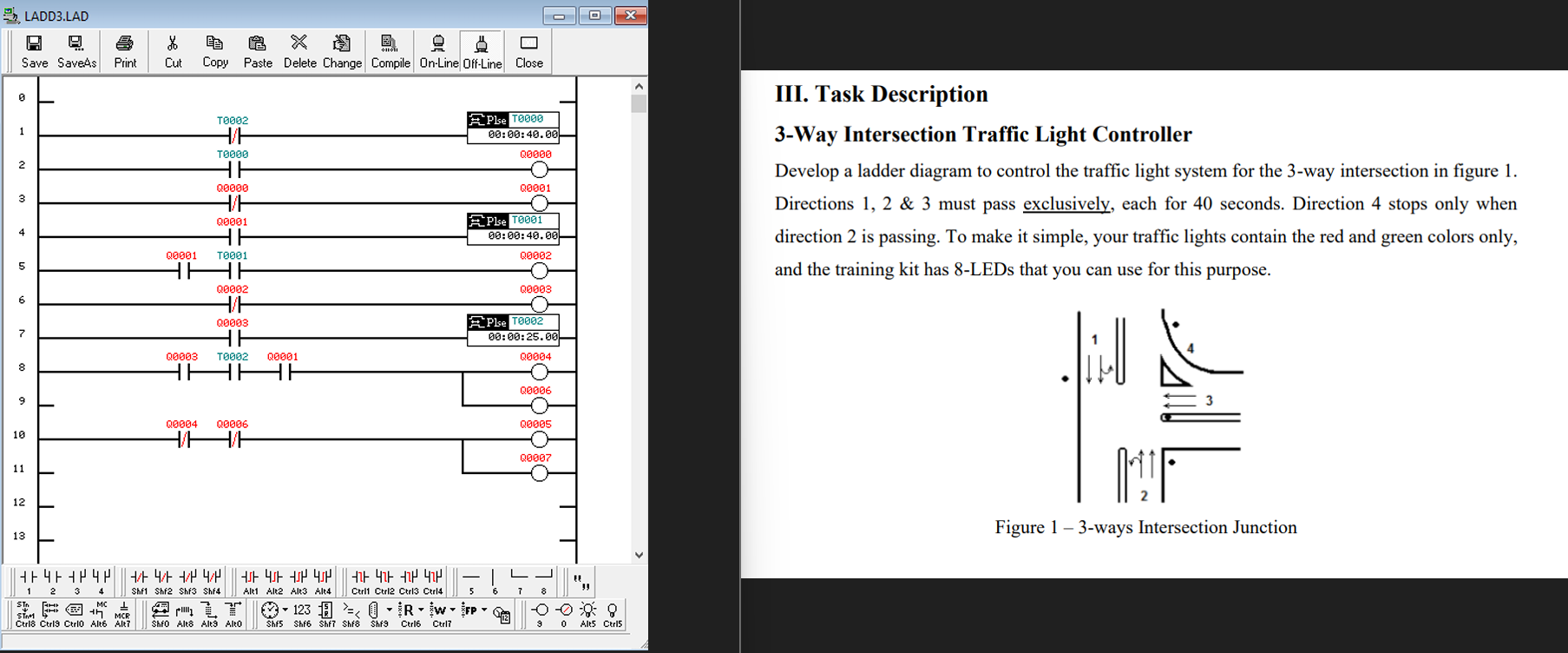

Develop a ladder diagram to control the traffic light system for the $3-$way intersection in figure $1.$

Directions $1,2$&$3$ must pass exclusively, each for $40$ seconds. Direction $4$ stops only when

direction $2$ is passing. To make it simple, your traffic lights contain the red and green colors only,

and the training kit has $8-$LEDs that you can use for this purpose.

Figure $1-3-$ways Intersection Junction

III. Task Description

$3-$Way Intersection Traffic Light Controller

Develop a ladder diagram to control the traffic light system for the $3-$way intersection in figure $1.$ Directions $1,2$&$3$ must pass exclusively, each for $40$ seconds. Direction $4$ stops only when direction $2$ is passing. To make it simple, your traffic lights contain the red and green colors only, and the training kit has $8-$LEDs that you can use for this purpose.

$*******$ use the included example to build the $3$ way inter section and include the name in the components $***********$

picture one is an example for a $4$ way inter section its not the solution $**********$ please dont use chat gpt answer we try that
