Question: I'm having a difficult time trying to solve this problem. I don't know where to even start. Can you help me, please? Q 3. A

I'm having a difficult time trying to solve this problem. I don't know where to even start. Can you help me, please?

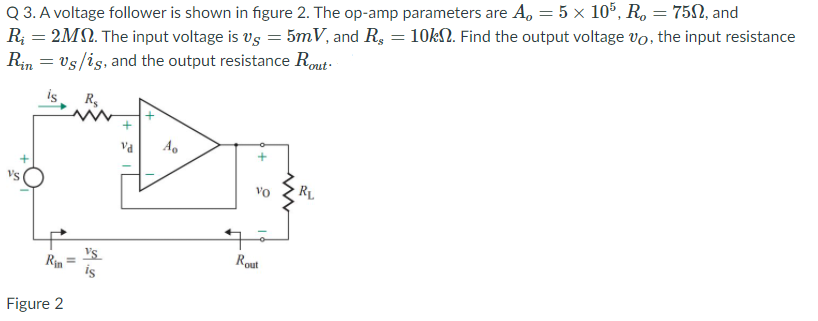

Q 3. A voltage follower is shown in figure 2. The op-amp parameters are A, = 5 x 10", R. = 7502, and Ri = 2MS. The input voltage is Us = 5mV, and R. = 10k. Find the output voltage vo, the input resistance Rin = Us/is, and the output resistance Rout. is + + Ao + Vd VO RL VS Rout VS Rin is Figure 2

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
