Question: Implement the boolean expression for Z (for each figure shown) based on the defined selector bits. For any selector not specified, choose based on need.

Implement the boolean expression for Z (for each figure shown) based

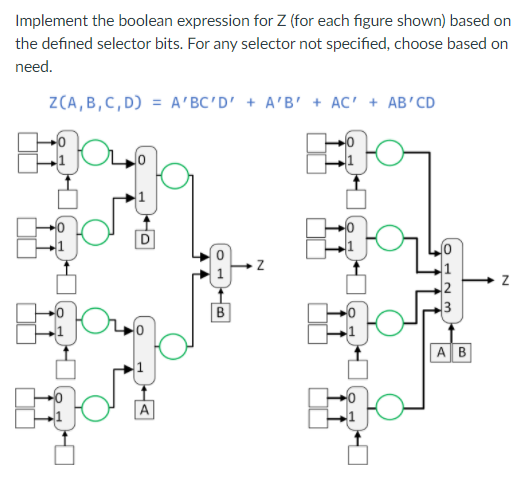

Implement the boolean expression for Z (for each figure shown) based on the defined selector bits. For any selector not specified, choose based on need. Z(A,B,C,D) = A'BC'D' + A'B' + AC' + AB'CD Z Z E. 1072 z 2 3 B Eki | AB

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
