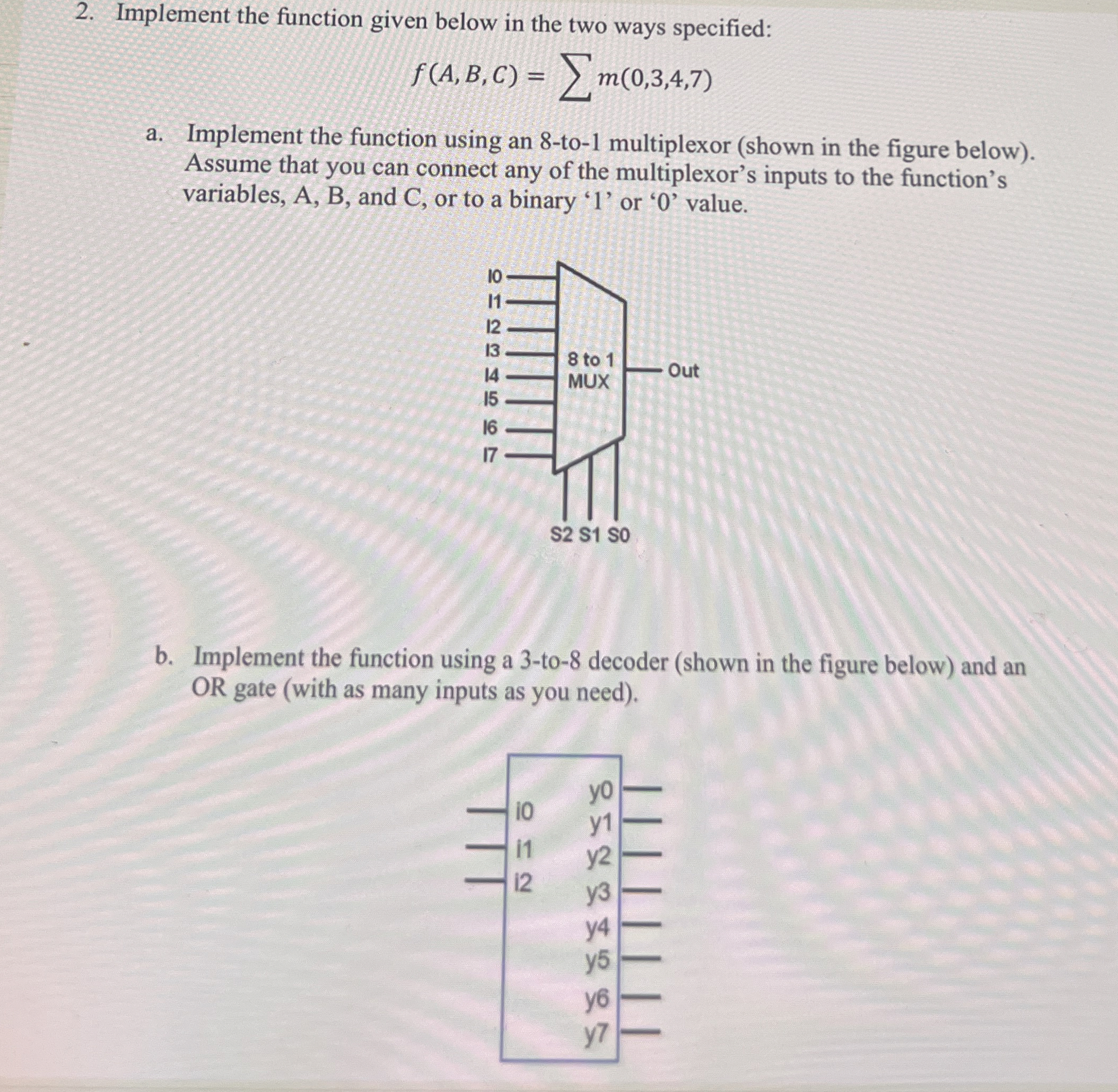

Question: Implement the function given below in the two ways specified: f ( A , B , C ) = ? ? m ( 0 ,

Implement the function given below in the two ways specified:
f(A,B,C)=??m(0,3,4,7)
a. Implement the function using an 8-to-1 multiplexor (shown in the figure below). Assume that you can connect any of the multiplexor's inputs to the function's variables, A,B, and C , or to a binary '1' or '0' value.
b. Implement the function using a 3-to-8 decoder (shown in the figure below) and an OR gate (with as many inputs as you need).
Implement the function given below in the two
