import matplotlib.pyplot as plt plt.style.use('ggplot') plt.rcParams["figure.figsize"] = (129, 119)

# set the color here COLOR = 'blue'

def autolabel(rectangle_group): for rect in rectangle_group: height = rect.get_height()

ax.annotate(str(height), xy = (rect.get_x() + rect.get_width() / 2,height), ha = 'center', xytext = (0,3),textcoords = 'offset points', color = 'grey')

phases = ['ABCDDDEE', 'FFEEBCDDDEE', 'CEBCDDDAAAAAAA', 'CDDDAAAAAAA', 'MDDAAAAAA', 'EEEEEEEQQDDGEEFEGEP', 'TEEEEQQDDGEEF', 'EEEQQDDGEEFV', 'SAEFEHWHEHEEEE'] playstation = [128025310, 116520050, 241038900, 26338370, 241298260, 734332223, 626385333, 535270300, 99187000 ] pc_sales = [0.499088743030168, 0.240923281868178, 0.0660538759431783, 0.0493960725965669, 0.406346654626102, 0.0400699034093881, 0.385682463666874, 0.0992130526364415, 0.32786310400448837 ]

width = 0.2 x_playstation = [x - width for x in range(len(playstation))] x_xbox = [x for x in range(len(playstation))] x_nintendo = [x + width for x in range(len(playstation))]

fig,ax = plt.subplots(figsize=(7,5))

rect1 = ax.bar(x_playstation, playstation,width, label = 'Playstation',color = COLOR) ax.plot(phases,pc_sales,label = 'PC Sales',color = COLOR,marker = 'o')

# set the color of y-axis ax.yaxis.label.set_color(COLOR) ax.tick_params(axis='y', colors=COLOR)

ax.set_title('The hardware market') ax.set_ylabel('Total sales (in millions)')

# set y-axis on the right side ax2 = ax.twinx()

# set y-range ax2.set_ylim(ax.get_ylim())

# set y label ax2.set_ylabel('Total sales (in millions)')

ax.legend() autolabel(rect1) plt.show()

How to change the unit of the y-axis on the right and left sides?

I want a bigger unit (100000000, 200000000, 300000000....) on the left y-axis and a smaller unit(0.01, 0.02.....) on the right y-axis and make the line graph visible (since the number in the line graph is too small, it's not visible on the graph).

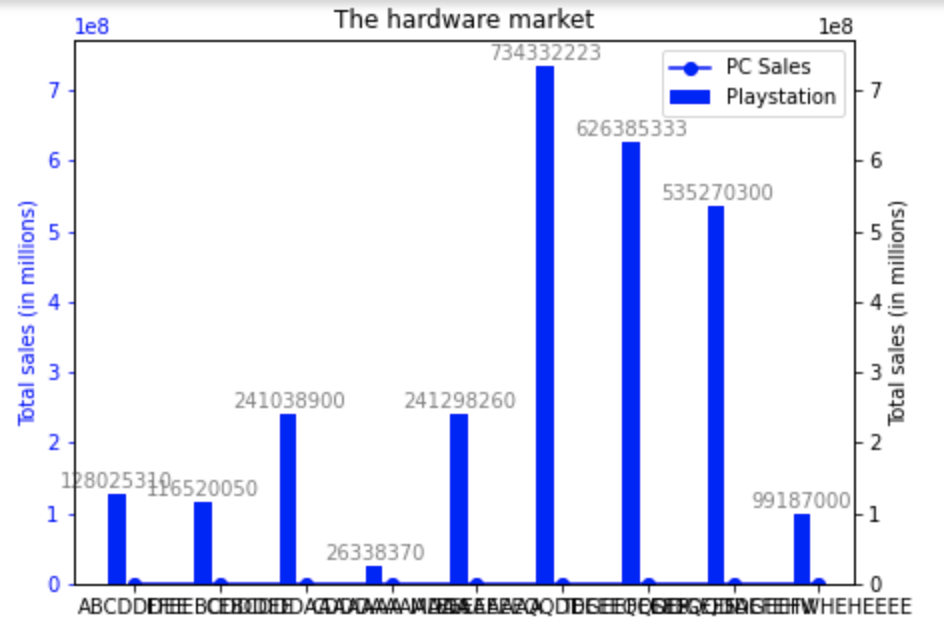

le8 The hardware market 734332223 le8 7 PC Sales Playstation 7 626385333 6 6 535270300 5 5 4 4 Total sales (in millions) Total sales (in millions) 3 241038900 241298260 2 2 180253186520050 1 99187000 -1 26338370 0 0 ABCDDERIE BCERDEID AADADAMAMA ALPEAQDBEERBEETGEHEEWHEHEEEE
