Question: Important example 1 . 1 2 : the inclined member in the figure below is subjected to a compressive force of 3 0 0 0

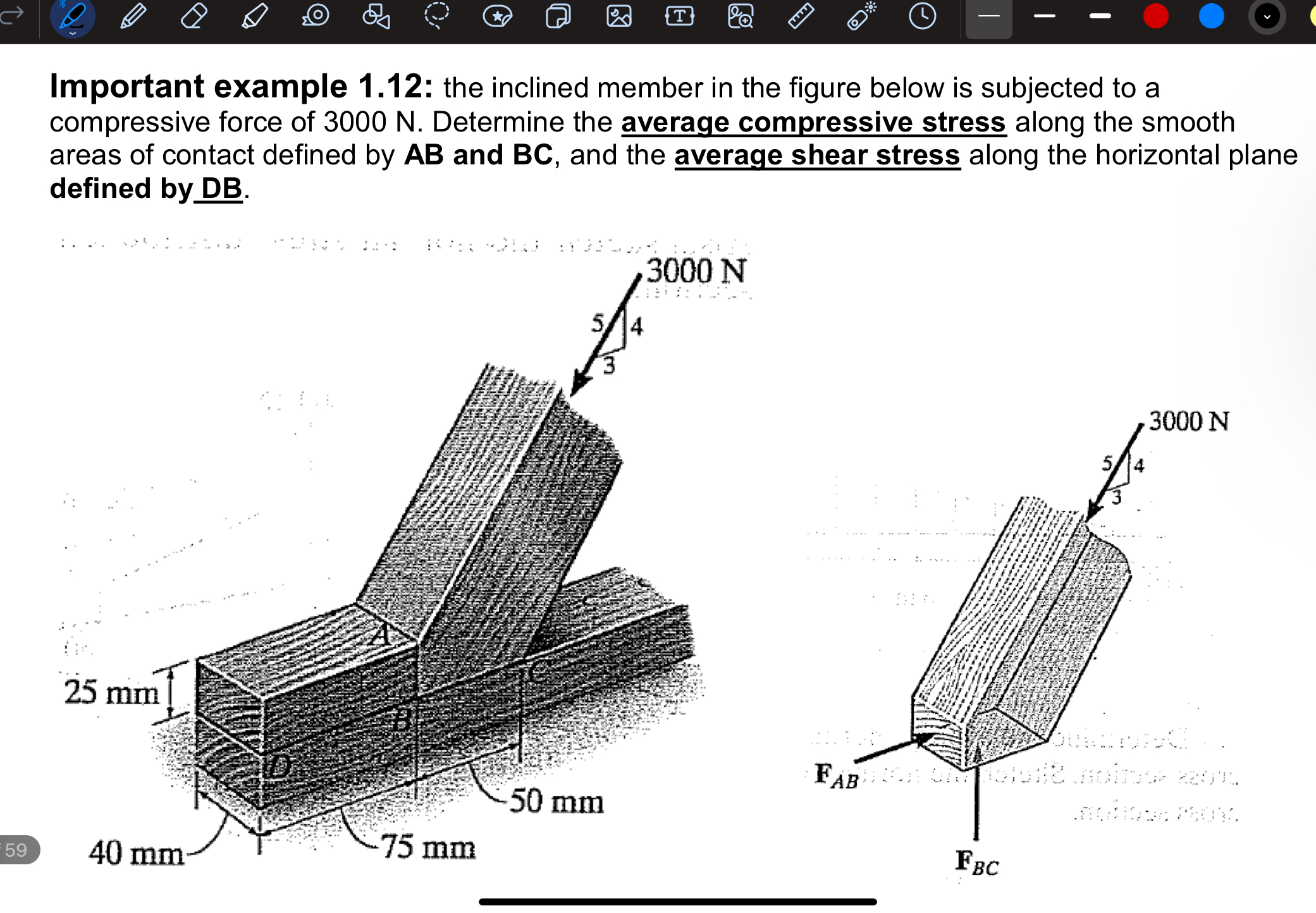

Important example 1.12: the inclined member in the figure below is subjected to a compressive force of 3000 N . Determine the average compressive stress along the smooth areas of contact defined by AB and BC, and the average shear stress along the horizontal plane defined by DB.
Important example 1 . 1 2 : the inclined member

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
