Question: in 45 minutes please Select the Correct Answer When a byte of data is write to the memory address A4673H, the state of the control

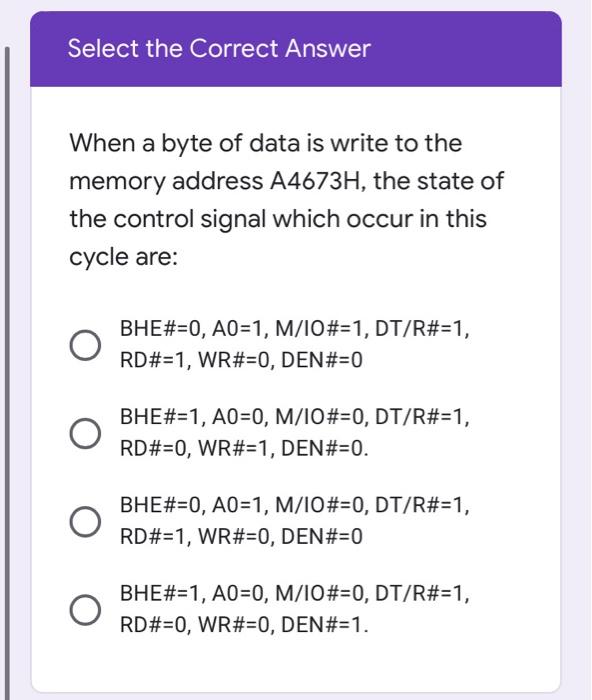

Select the Correct Answer When a byte of data is write to the memory address A4673H, the state of the control signal which occur in this cycle are: BHE#=0, A0=1, M/IO#=1, DT/R#=1, RD#=1, WR#=0, DEN#=0 BHE#=1, AO=0, M/10#=0, DT/R#=1, RD#=0, WR#=1, DEN#=0. BHE#=0, A0=1, M/IO#=0, DT/R#=1, RD#=1, WR#=0, DEN#=0 BHE#=1, AO=0, M/IO#=0, DT/R#=1, RD#=0, WR#=0, DEN#=1
