Question: in 45 minutes please Select the Correct Answer When a word of data is Input from the 1/0 address AAAAH, the state of the control

in 45 minutes please in 45 minutes please Select the Correct Answer When a word of

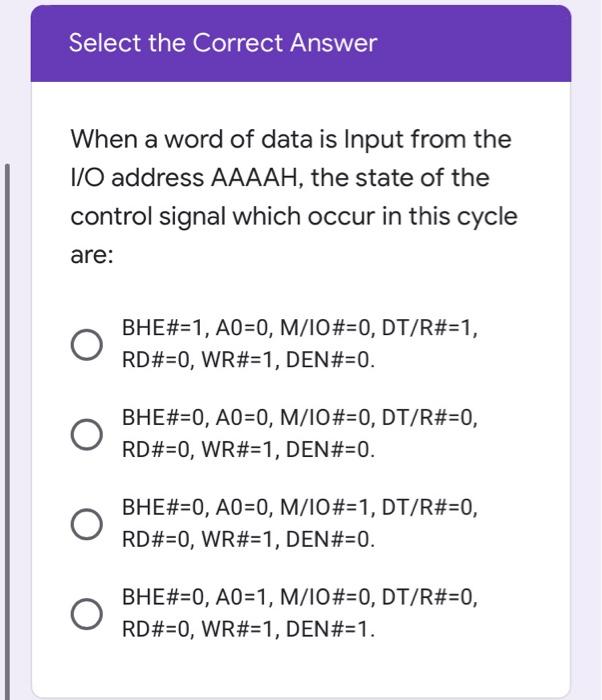

Select the Correct Answer When a word of data is Input from the 1/0 address AAAAH, the state of the control signal which occur in this cycle are: BHE#=1, AO=0, M/IO#=0, DT/R#=1, RD#=0, WR#=1, DEN#=0. BHE#=0, A0=0, M/IO#=0, DT/R#=0, RD#=0, WR#=1, DEN#=0. BHE#=0, AO=0, M/10#=1, DT/R#=0, RD#=0, WR#=1, DEN#=0. BHE#=0, A0=1, M/10#=0, DT/R#=0, RD#=0, WR#= 1, DEN#=1
