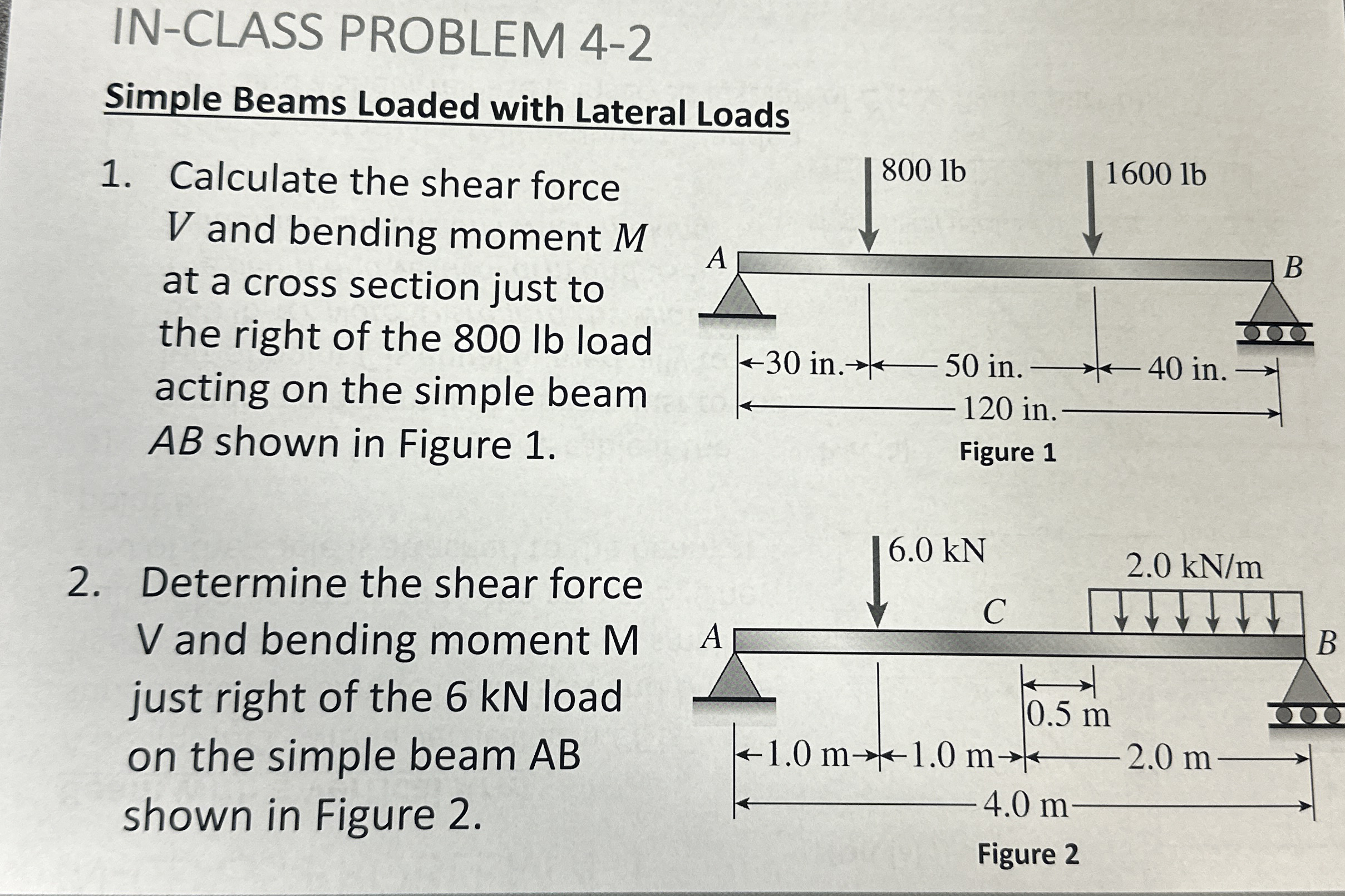

IN$-$CLASS PROBLEM $4-2$

Simple Beams Loaded with Lateral

Calculate the shear force $V$ and bending moment $M$ at a cross section just to the right of the $800$ lb load acting on the simple beam $AB$ shown in Figure $1.$

Determine the shear force $V$ and bending moment $M$ just right of the $6$ kN load on the simple beam $AB$ shown in Figure $2.$
