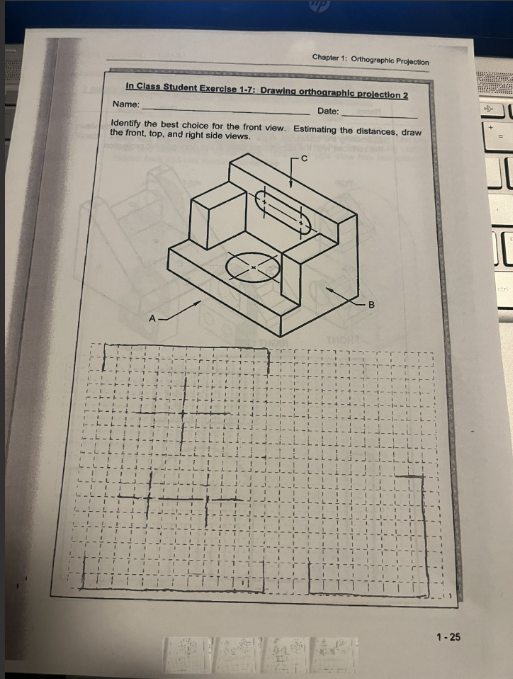

In Class Student Exercise $1-7,1-6,1-5,1-4$: Drawing orthographic projection $2$

Identify the best choice for the front view. Estimating the distances, draw

the front, top, and right side views.

r

In Class Student. Exercige $1-6$: Drawing a orthegraphle proiection $1$

Name: Date:

Shade in the surfaces that will appear in the front, top, and right slde views. Estimating the distances, draw the front, top, and right side views. Identify the surfaces with the appropriate letter in the orthographic projection.

KIGHI SIDE

In Class Student Exercise $1-5$: Miseina llines $2$

Name: Date:

Fill in the missing lines in the top, front, and right side views. Hint: The top view has one missing visible line. The front view has four missing visible lines and four missing center lines. The right side view has two miesing hidden lines and one missing center line.

FRONT

RIGHT SIDE

In Class Student Exercise $1-4$: Missing lines $1$

Name: Date:

Fill in the missing lines in the front, right side, and top views. Hint: The front view has one missing visible line. The right side view has one missing visible line and two missing hidden lines. The top view has five missing visible lines and two missing hidden lines.

FRONT

RIGHT SIDE
