Question: In ( Figure 1 ) , M = 7 0 0 N * m and P = 5 0 0 N . Determine the components

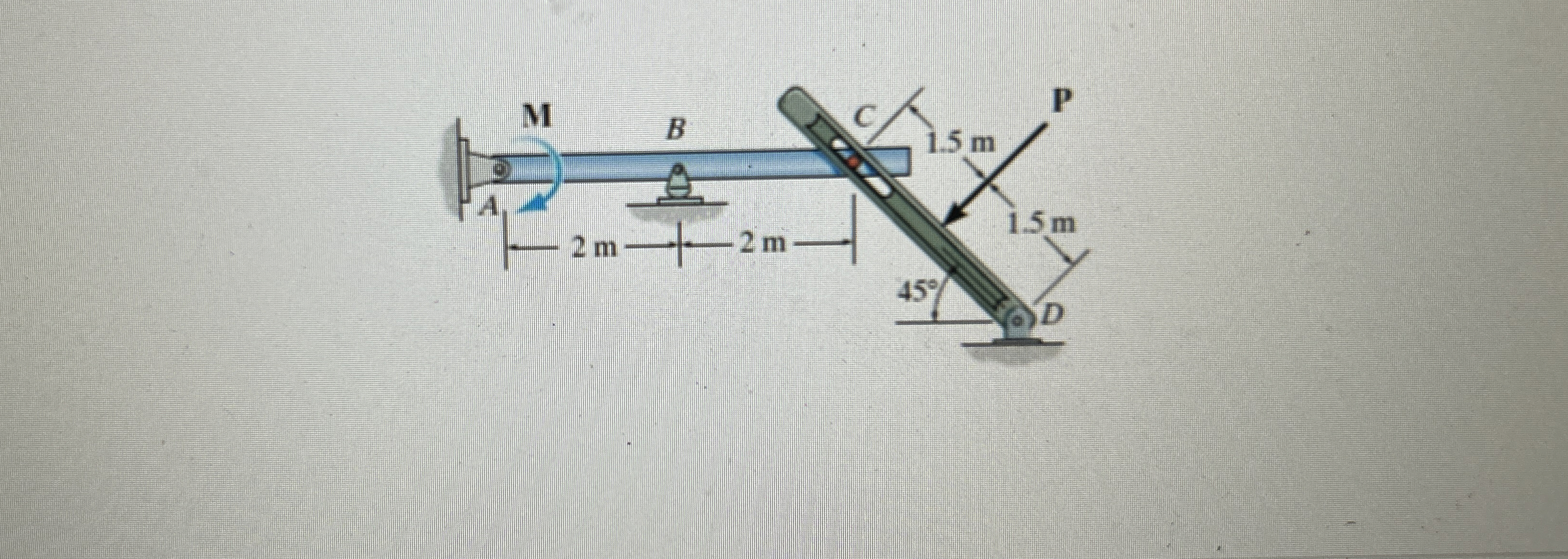

In (Figure 1),M=700N*m and P=500N. Determine the components of reaction at A and B.
In ( Figure 1 ) , M = 7 0 0 N * m and P = 5 0 0 N

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
