Question: In ( Figure 1 ) , P 1 = 4 0 0 l b and P 2 = 7 0 0 l b . Determine

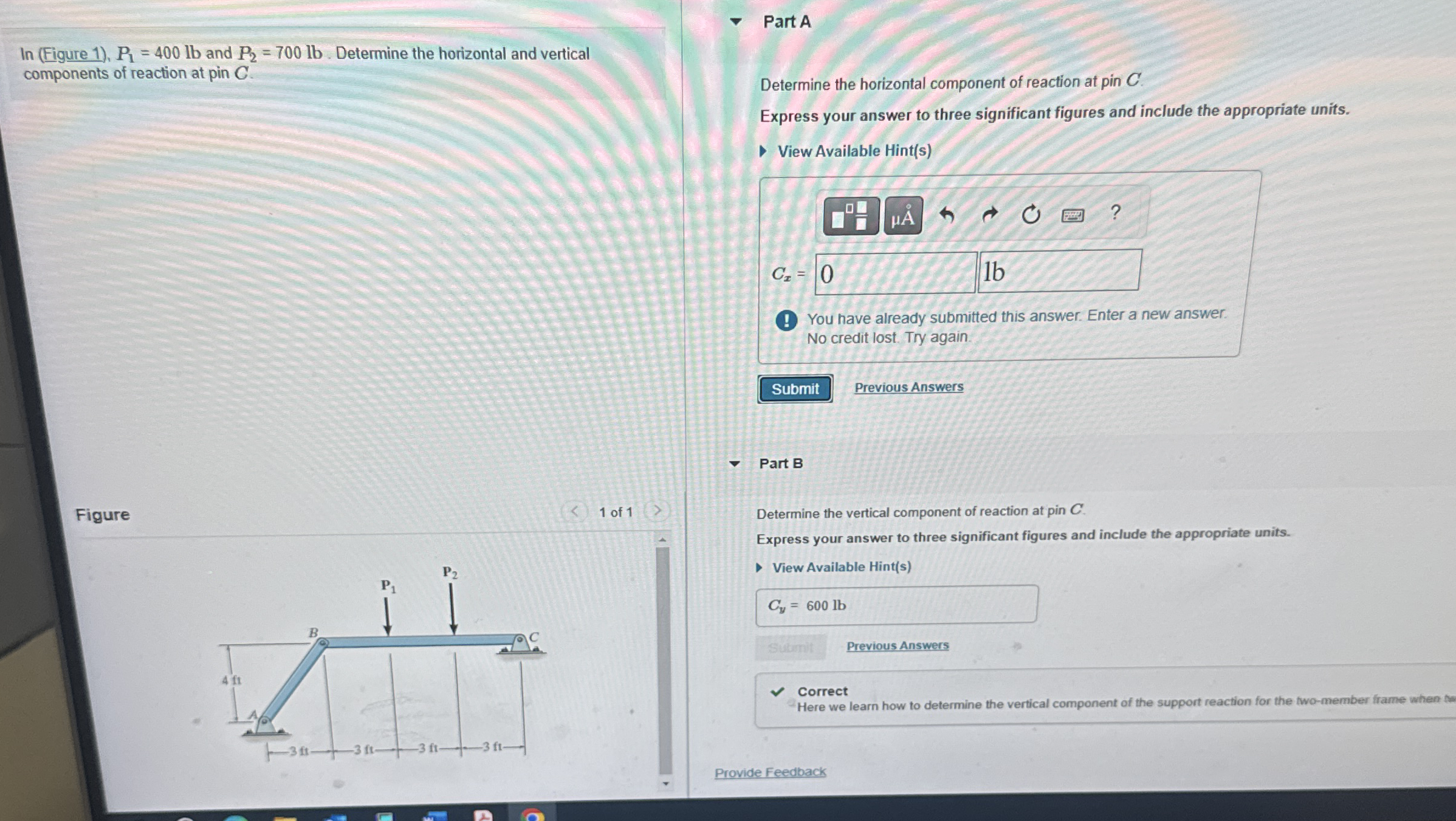

In (Figure 1),P1=400lb and P2=700lb. Determine the horizontal and vertical components of reaction at pin C.
Part A
Determine the horizontal component of reaction at pin C.
Express your answer to three significant figures and include the appropriate units.
View Available Hint(s)
Previous Answers
Part B
Determine the vertical component of reaction at pin C.
Express your answer to three significant figures and include the appropriate units.
View Available Hint(s)
Correct
Here we learn how to determine the vertical component of the support reaction for the two-member frame when on
Provide Feedback
In ( Figure 1 ) , P 1 = 4 0 0 l b and P 2 = 7 0 0

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
