Question: In four - way intersections ( a ) , 3 2 conflict points are existed between vehicles and pedestrians as shown below. In case of

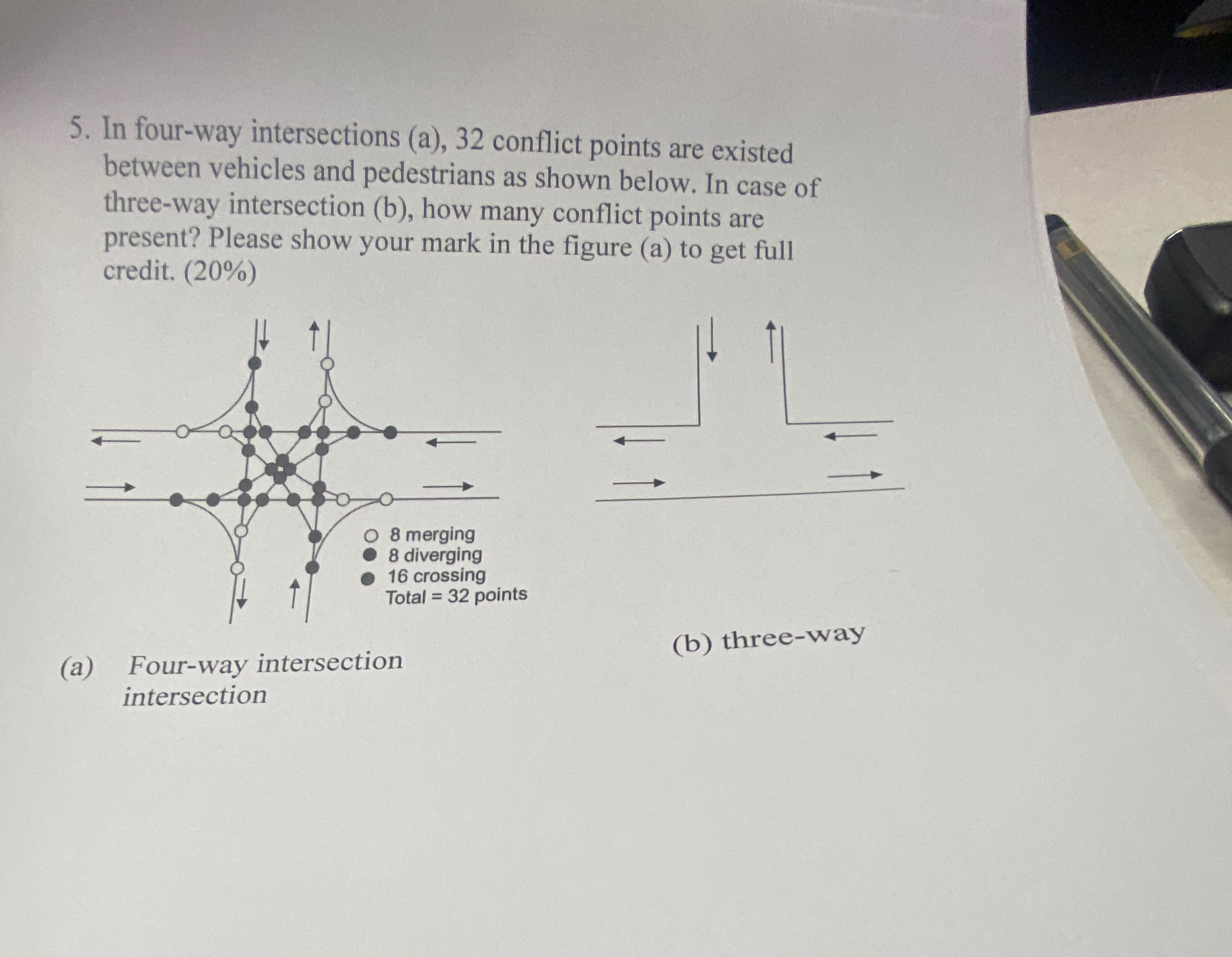

In four-way intersections (a),32 conflict points are existed between vehicles and pedestrians as shown below. In case of three-way intersection (b), how many conflict points are present? Please show your mark in the figure (a) to get full credit. (20%)
(a) Four-way intersection
(b) three-way intersection
In four - way intersections ( a ) , 3 2 conflict
