Question: In the attached Process Flow Diagram ( PFD ) , how would the initial value of the Process Variable ( PV ) of FIC -

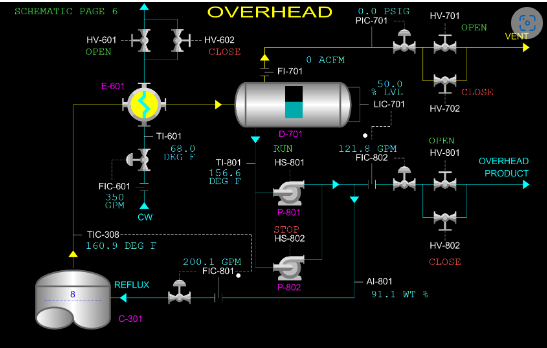

In the attached Process Flow Diagram (PFD), how would the initial value of the Process Variable (PV) of FIC-601 change before any controller took any control or corrective action if the Reflux Pump P-801(as illustrated in the attached PFD below) suddenly FAILS and STOPS RUNNING?
will there be no change, increase or decrease?
