Question: In the circuit shown, C 25.9 pF and E 223.43 V. Initially the capacitor is uncharged and the switch 5 is in position 1. The

In the circuit shown, C 25.9 pF and E 223.43 V.

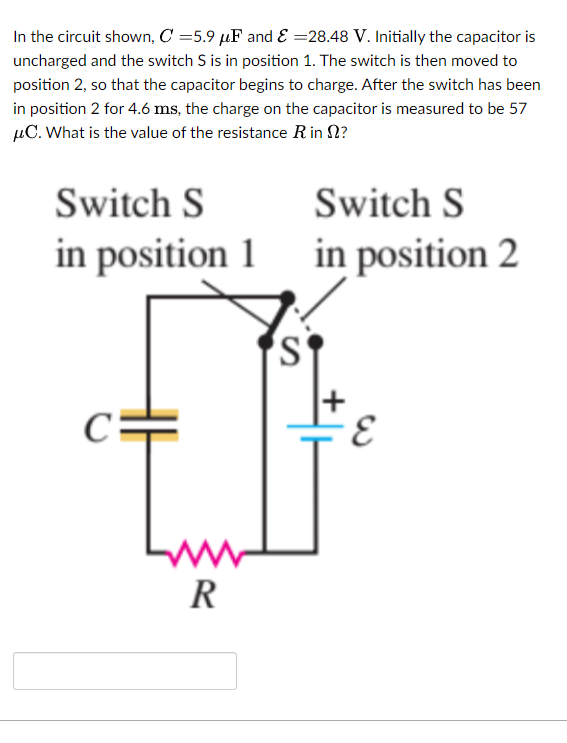

In the circuit shown, C 25.9 pF and E 223.43 V. Initially the capacitor is uncharged and the switch 5 is in position 1. The switch is then moved to position 2, so that the capacitor begins to charge. litter the switch has been in position 2 for 4.6mm. the charge on the capacitor is measured to be 5? p10. What is the value of the resistance R in 5]? Switch S Switch S in position 1 in position 2 -/

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
