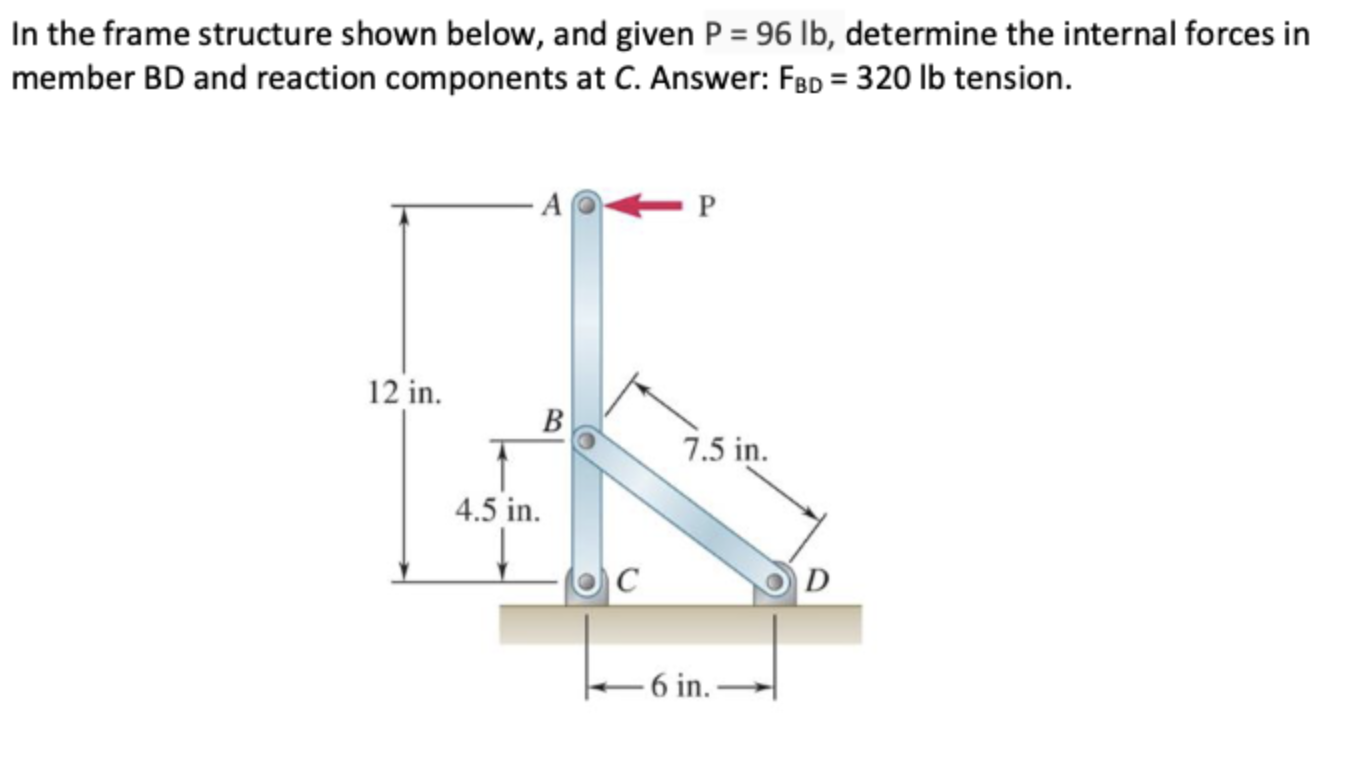

Question: In the frame structure shown below, and given P = 9 6 l b , determine the internal forces in member B D and reaction

In the frame structure shown below, and given P=96lb, determine the internal forces in
member BD and reaction components at C. Answer: FBD=320lb tension.
In the frame structure shown below, and given P =

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

5 - In the frame structure shown below, and given P = 3 5 2 N , determine the internal forces in members B D and reaction components at C . Answer: F B D = 1 7 8 0 N compression.
