Question: 5 - In the frame structure shown below, and given P = 3 5 2 N , determine the internal forces in members B D

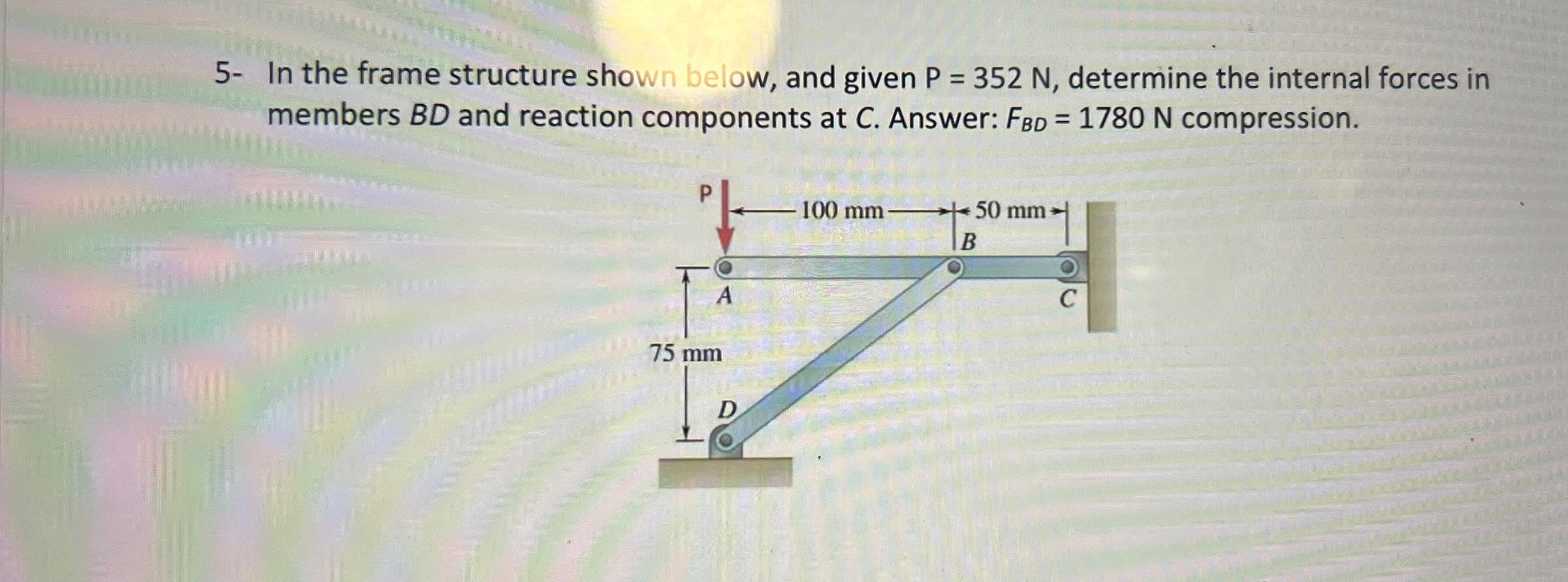

5- In the frame structure shown below, and given P=352N, determine the internal forces in members BD and reaction components at C. Answer: FBD=1780N compression.
5 - In the frame structure shown below, and given

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
