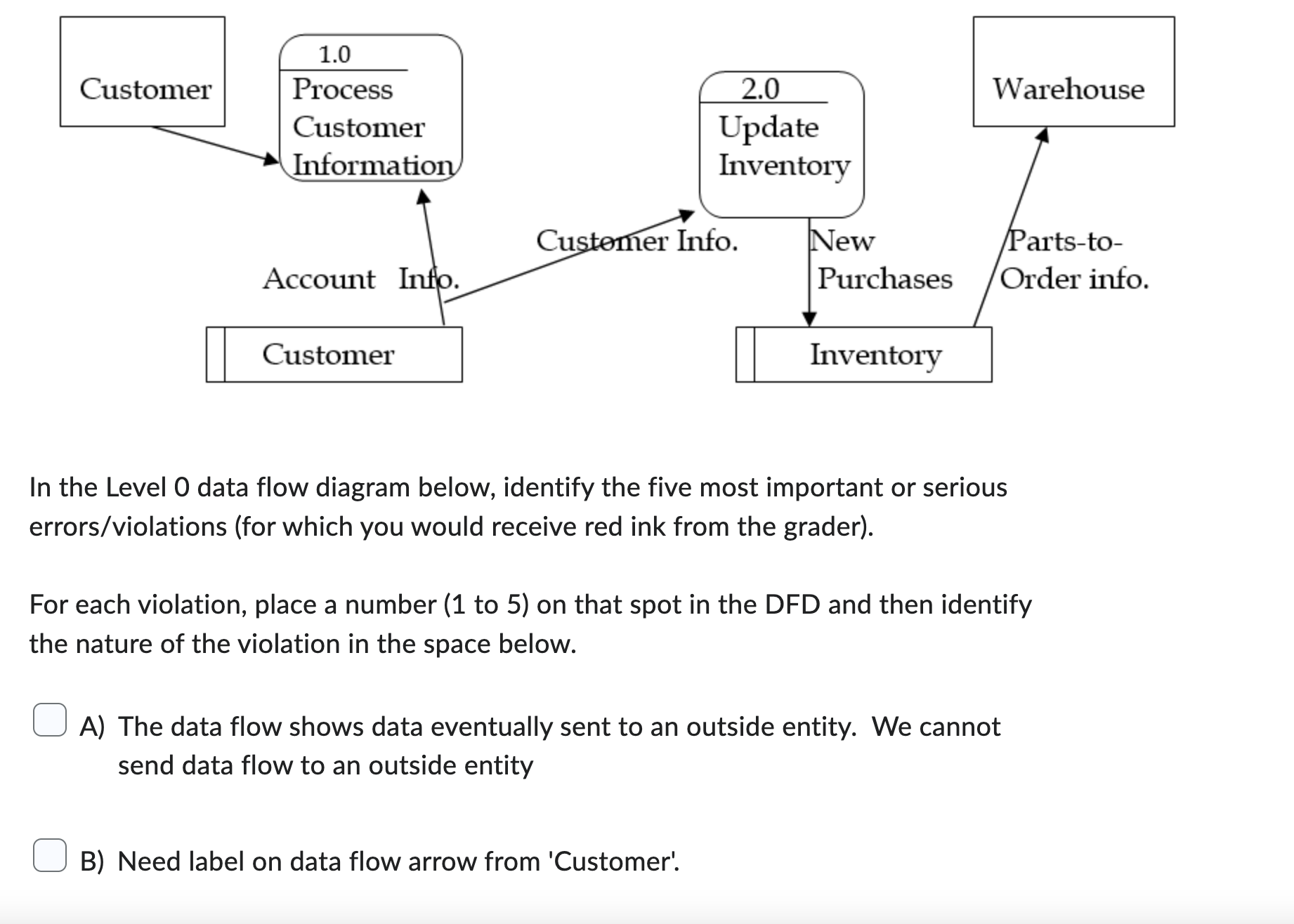

In the Level $0$ data flow diagram below, identify the five most important or serious errors$/$violations $($for which you would receive red ink from the grader$).$

For each violation, place a number $(1$ to $5)$ on that spot in the DFD and then identify the nature of the violation in the space below.

Question $2$ options:

A$)$

The data flow shows data eventually sent to an outside entity.$$ We cannot send data flow to an outside entity

B$)$

Need label on data flow arrow from 'Customer'.

C$)$

Numbers should be on both 'Customer' and 'Inventory' processes.

D$)$

'Update Inventory' is too detailed of a process. Need a process that can be further decomposed to level $0.$

E$)$

Data flowing into the$$ 'Warehouse' process should be coming from the 'Customer' process.

F$)$

Forked dataflow from 'Customer' does not need two arrows.

G$)$

Blackhole process in $1\mathrm{.}0($data flows in$,$ but nothing flows out$)$

H$)$

Forked dataflow from 'Customer' has two types of data $($only one is allowed$)$

I$)$

'Customer' is too broad of a process. Need a process that cannot be further decomposed.

J$)$

Arrow is in the wrong direction between 'Warehouse' and 'Inventory'. In the Level $0$ data flow diagram below, identify the five most important or serious errors$/$violations $($for which you would receive red ink from the grader$).$

For each violation, place a number $(1$ to $5)$ on that spot in the DFD and then identify the nature of the violation in the space below.

A$)$ The data flow shows data eventually sent to an outside entity. We cannot send data flow to an outside entity

B$)$ Need label on data flow arrow from 'Customer'. C$)$ Numbers should be on both 'Customer' and 'Inventory' processes.

D$)$ 'Update Inventory' is too detailed of a process. Need a process that can be further decomposed to level $0.$

E$)$ Data flowing into the 'Warehouse' process should be coming from the 'Customer' process.

F$)$ Forked dataflow from 'Customer' does not need two arrows.

G$)$ Blackhole process in $1\mathrm{.}0($data flows in$,$ but nothing flows out$)$

H$)$ Forked dataflow from 'Customer' has two types of data $($only one is allowed$)$

I$)$ 'Customer' is too broad of a process. Need a process that cannot be further decomposed.

J$)$ Arrow is in the wrong direction between 'Warehouse' and 'Inventory'.
