Question: In the mechanism shown below, link ( A B ) rotates at a constant angular velocity of 1 0 . 0 rad per

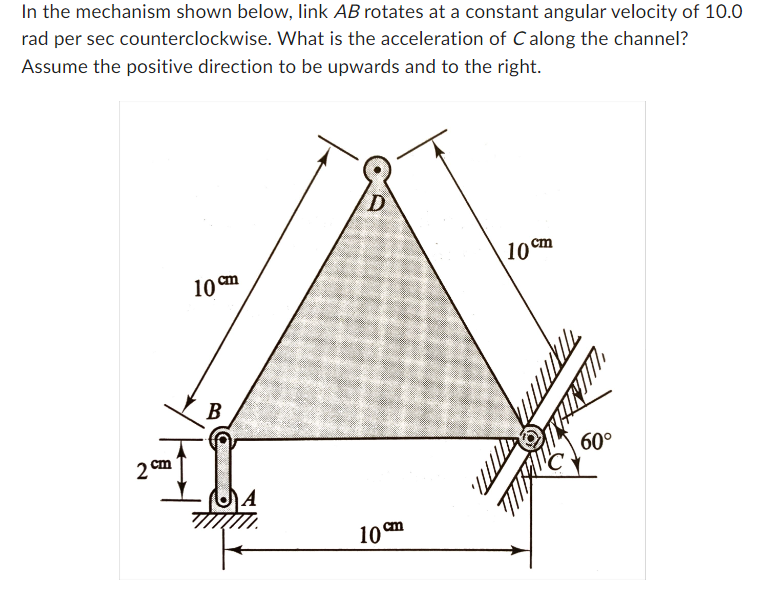

In the mechanism shown below, link \( A B \) rotates at a constant angular velocity of 10.0 rad per sec counterclockwise. What is the acceleration of \( C \) along the channel? Assume the positive direction to be upwards and to the right.
In the mechanism shown below, link \ ( A B \ )

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
