Question: In the position shown, bar A B has an angular velocity of 1 6 r a d s counterclockwise. Determine the angular velocity of bars

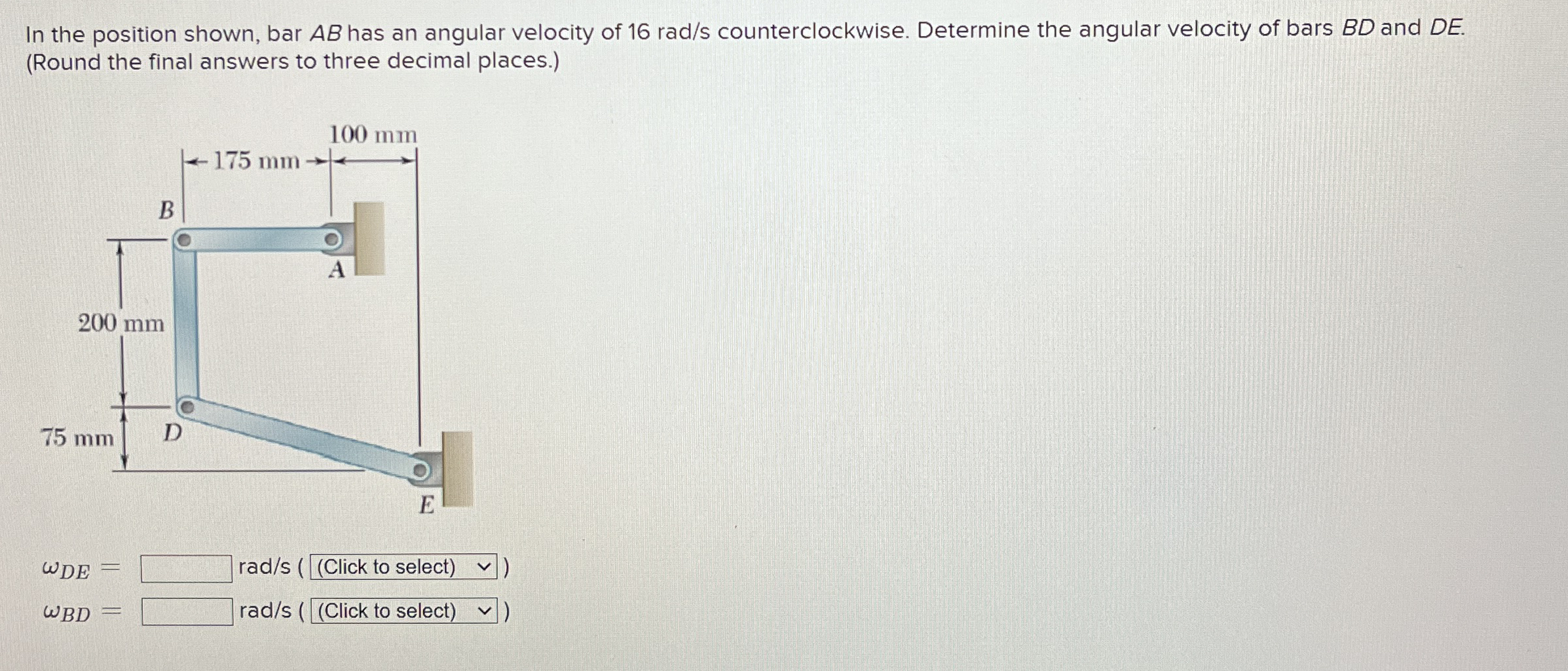

In the position shown, bar AB has an angular velocity of 16rads counterclockwise. Determine the angular velocity of bars BD and DE.(Round the final answers to three decimal places.)
DE= rad/s ()
BD= rad/s ((Click to select))
In the position shown, bar A B has an angular

Step by Step Solution

There are 3 Steps involved in it
