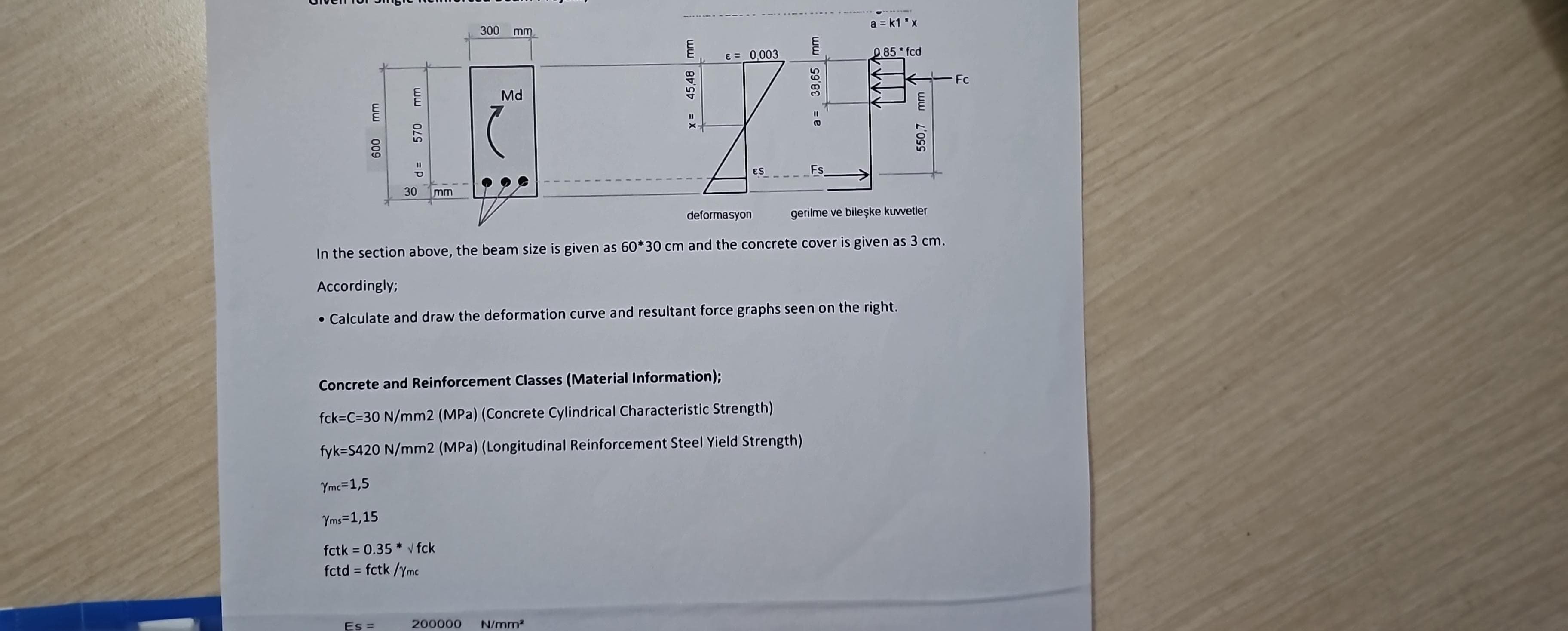

In the section above, the beam size is given as $60**30cm$ and the concrete cover is given as $3$ cm $.$

Accordingly;

Calculate and draw the deformation curve and resultant force graphs seen on the right.

Beam Bearing Capacity calculations will be explained.

Single Reinforced Beam reinforcement calculations will be explained.

PYTHON mathematical formula creation will be explained briefly $($Libraries$,$ sample codes etc.

In the section above, the beam size is given as $60**30cm$ and the concrete cover is given as $3$ cm $.$

Accordingly;

Calculate and draw the deformation curve and resultant force graphs seen on the right.

Concrete and Reinforcement Classes $($Material Information$)$;

$fck=C=30\frac{N}{m}m2($MPa$)($Concrete Cylindrical Characteristic Strength$)$

fyk$=$S$420$ N$/$mm$2($MPa$)($Longitudinal Reinforcement Steel Yield Strength$)$

${}_{mc}=1,5$

${}_{ms}=1,15$

$fctk={0\mathrm{.}35}^{**}*fck$

$fctd=fctk\frac{?}{{}_{mc}})$
