Question: In the structure below, determine the forces that act on member BD and CD . The red arrows designate a distributed load. ( use methods

In the structure below, determine the forces that act on member BD and CD . The red arrows designate a distributed load. (use methods of sections)
Note: I have asked this question like three times, since mechanical engineers experts here are just solving without FBD. To help me understand this better, I would really appreaciate if you include Free Body Diagram (especially after the cut is made, and clearly explain how those forces will be resolved in x and y) to help me understand it better.

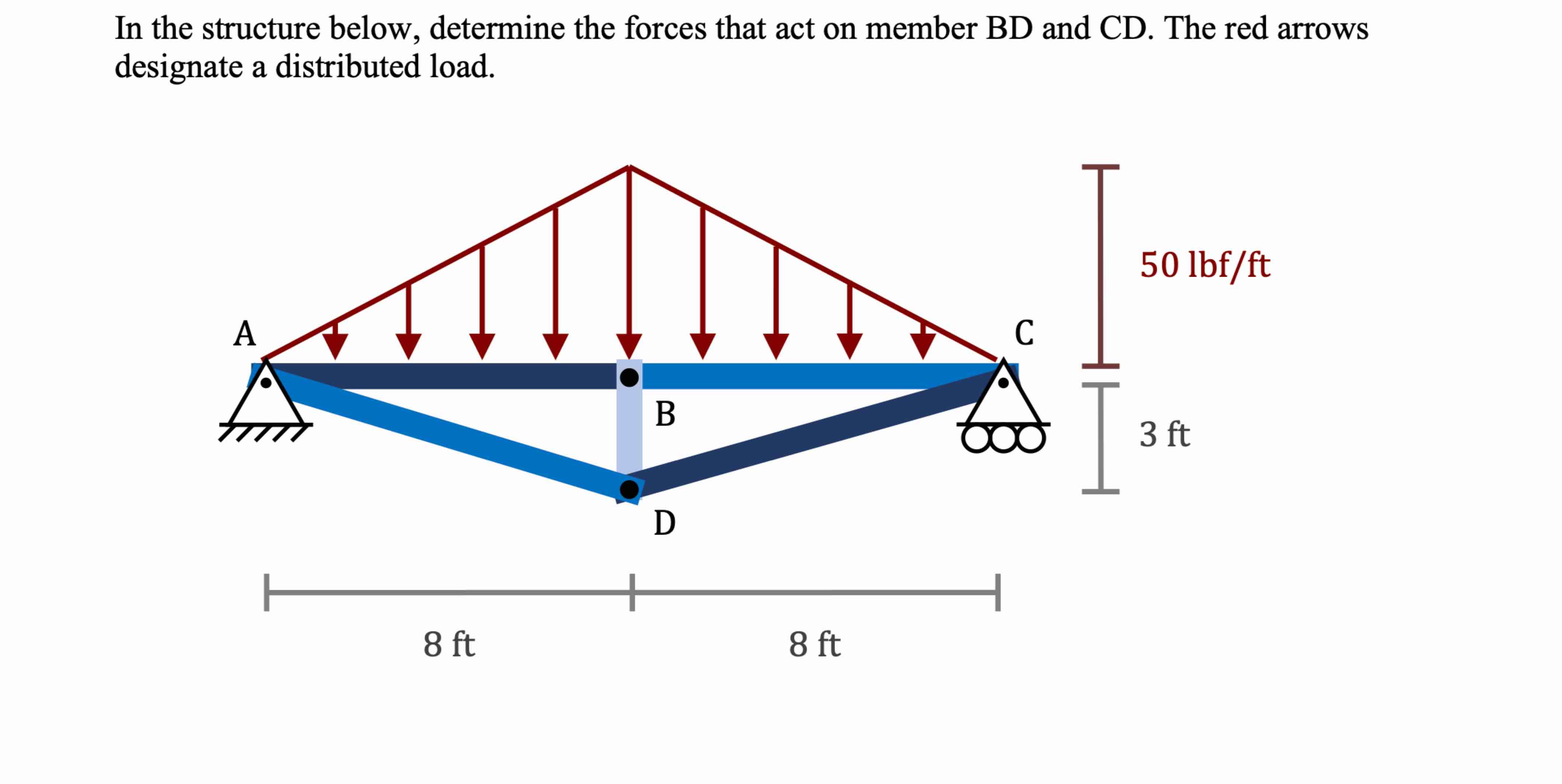

In the structure below, determine the forces that

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

In the structure below, determine the forces that act on member BD and CD . The red arrows designate a distributed load. ( use both methods of joints and sections and clearly include FBD to explain...

Q:

In the structure below, determine the forces that act on member BD and CD . The red arrows designate a distributed load. ( using method of sections, Include shear forces ( V ) and moments where the...

Q:

Problem 2 ( 2 5 points ) ( use method of cuts and explain with Free Body Diagrams each step ) In the structure below, determine the forces that act on member BD and CD . The red arrows designate a...

Q:

Using methods of sections, determine the forces that act on member BD and CD and clearly show the Free Body Diagram after the cut was made. The red arrows designate a distributed load.
