Question: In the system shown in Fig. 5 . 1 , cable B has an ultimate tensile strength of 1 8 6 M N m 2

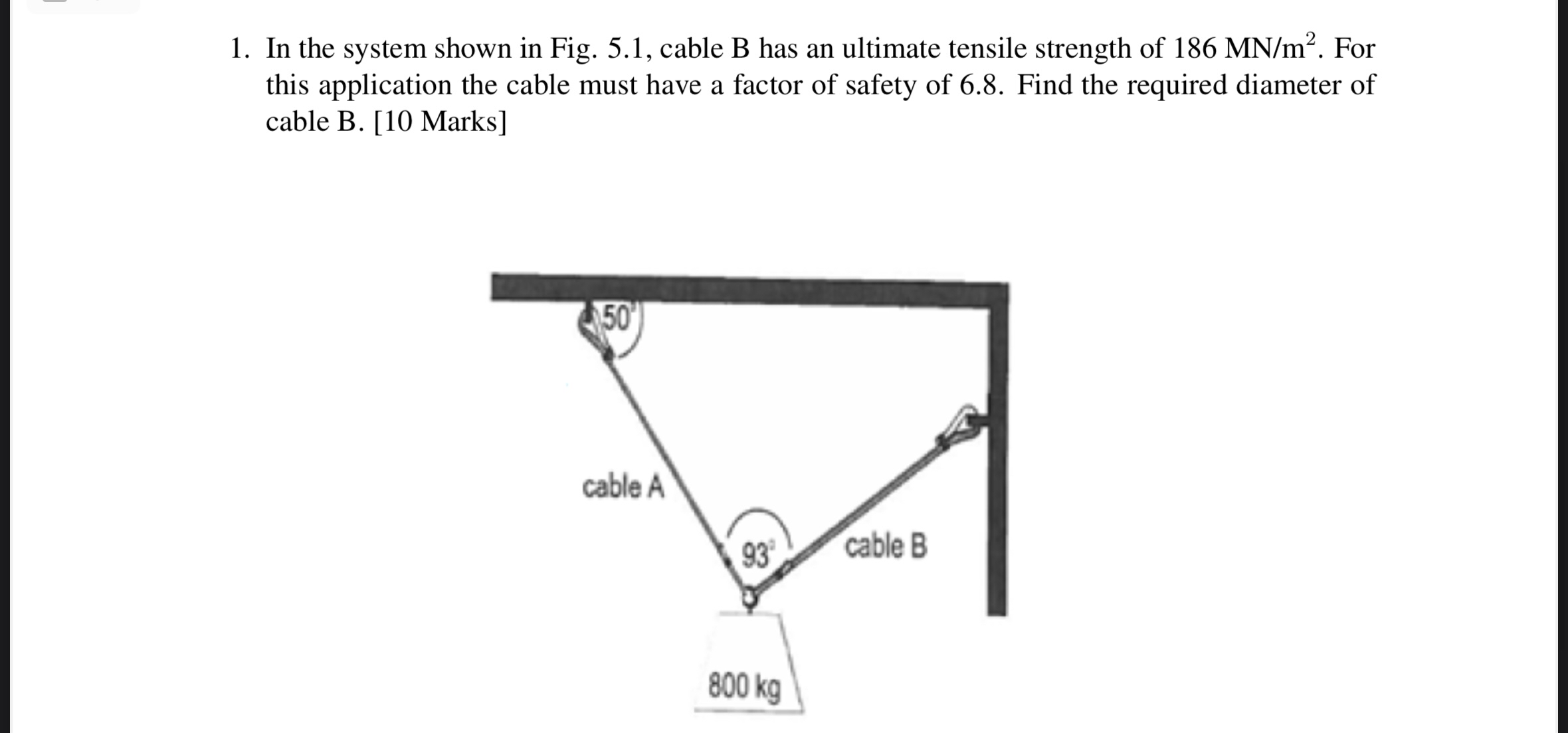

In the system shown in Fig. 5.1, cable B has an ultimate tensile strength of 186MNm2. For this application the cable must have a factor of safety of 6.8. Find the required diameter of cable B.[10 Marks]
In the system shown in Fig. 5 . 1 , cable B has

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
