(In this question, only part (e) and (f) are required to be answered. Thank you!)

Engineering Project Management Question:

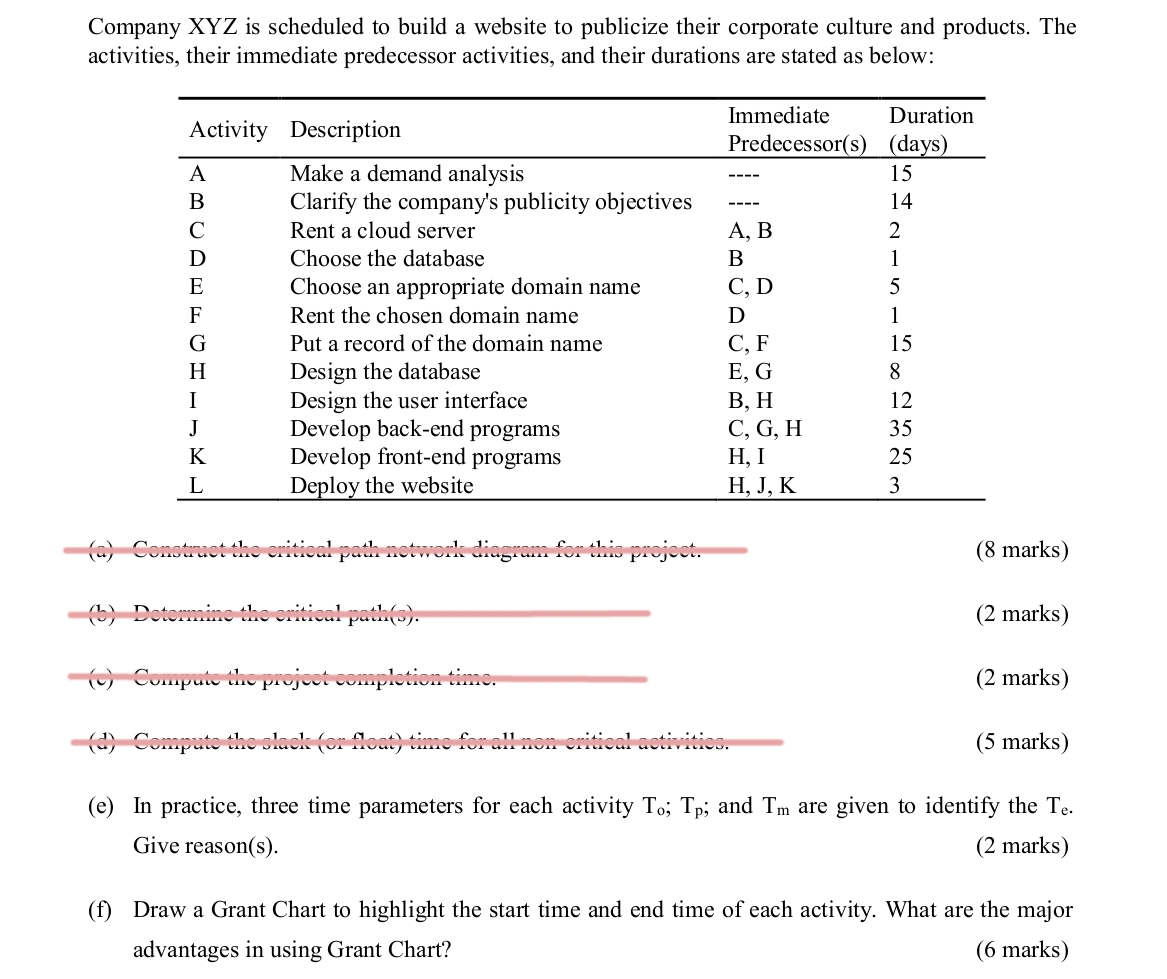

Company XYZ is scheduled to build a website to publicize their corporate culture and products. The activities, their immediate predecessor activities, and their durations are stated as below: Activity Description A Make a demand analysis B Clarify the company's publicity objectives Rent a cloud server D Choose the database E Choose an appropriate domain name F Rent the chosen domain name G Put a record of the domain name Design the database I Design the user interface J Develop back-end programs K Develop front-end programs L Deploy the website Immediate Duration Predecessor(s) (days) 15 14 A, B 2 B 1 C D 5 D 1 15 E, G 8 B, H 12 C, G, H 35 H, I 25 H, J, K 3 C, F (a) Conotruot tho oritioal path notwork diagram for this projoot. (8 marks) (1) Dotorino tho oritical path(). (2 marks) Computo the project complotion timo. (2 marks) (4) Computo tho slack (or float) time for all non oritioal activitios. (5 marks) (2) In practice, three time parameters for each activity To; Tp; and Tm are given to identify the Te. Give reason(s). (2 marks) (f) Draw a Grant Chart to highlight the start time and end time of each activity. What are the major advantages in using Grant Chart? (6 marks)
