Question: Include screenshots of simulink model with revised corrections, matlab script, and box final answer for total resistance - Use 'Constant' blocks (rather than 'From workspace'

Include screenshots of simulink model with revised corrections, matlab script, and box final answer for total resistance

final answer for total resistance - Use 'Constant' blocks (rather than 'From

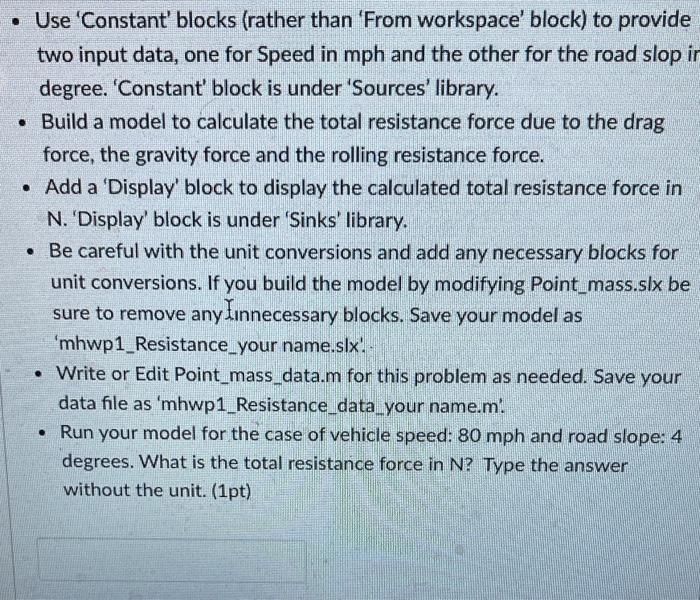

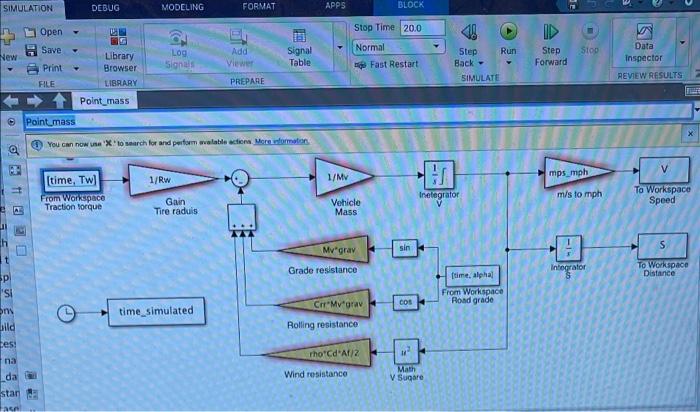

- Use 'Constant' blocks (rather than 'From workspace' block) to provide two input data, one for Speed in mph and the other for the road slop in degree. 'Constant' block is under 'Sources' library. - Build a model to calculate the total resistance force due to the drag force, the gravity force and the rolling resistance force. - Add a 'Display' block to display the calculated total resistance force in N. 'Display' block is under 'Sinks' library. - Be careful with the unit conversions and add any necessary blocks for unit conversions. If you build the model by modifying Point_mass.slx be sure to remove any Iinnecessary blocks. Save your model as 'mhwp1_Resistance_your name.slx'. . - Write or Edit Point_mass_data.m for this problem as needed. Save your data file as 'mhwp1_Resistance_data_your name.m'. - Run your model for the case of vehicle speed: 80mph and road slope: 4 degrees. What is the total resistance force in N? Type the answer without the unit. (1pt)

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
