Question: Include solution steps and units 2. Two batteries and three resistors are connected as shown in the figure below. Given that R1=0.250, R2=0.200, R3=0.500, E1=6.0V,

Include solution steps and units

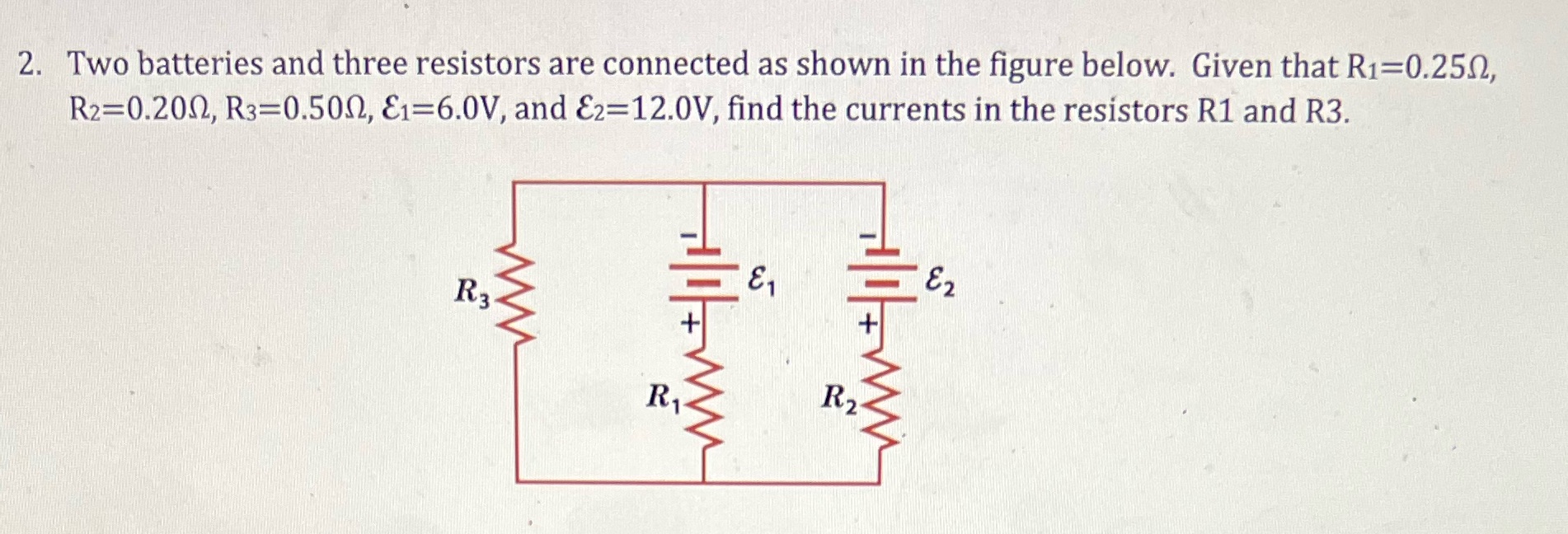

2. Two batteries and three resistors are connected as shown in the figure below. Given that R1=0.250, R2=0.200, R3=0.500, E1=6.0V, and &2=12.0V, find the currents in the resistors R1 and R3. 81 E2 R3 R2 R1

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer

Step: 1 Unlock blur-text-image

Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock

Step: 3 Unlock
