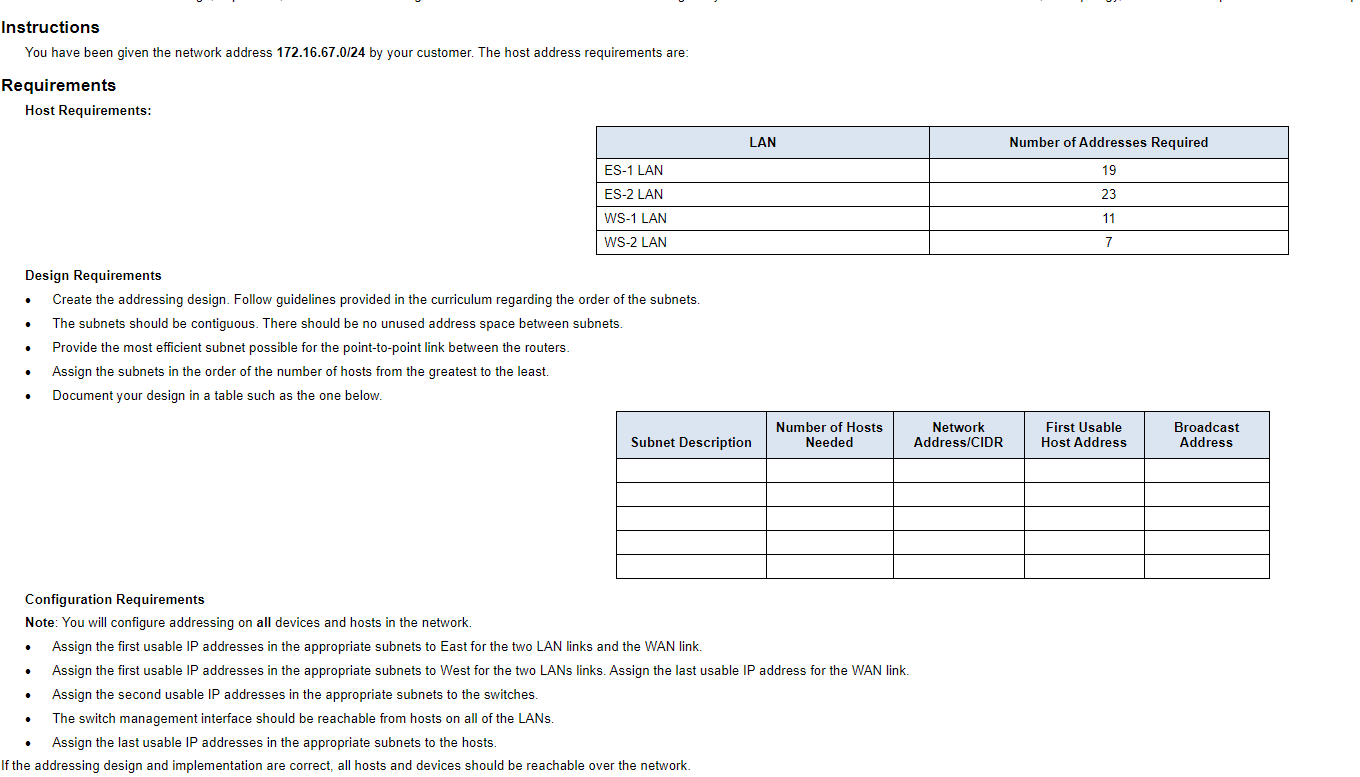

Instructions

You have been given the network address $172\mathrm{.}16.\frac{67\mathrm{.}0}{24}$ by your customer. The host address requirements are:

Requirements

Host Requirements:

Design Requirements

Create the addressing design. Follow guidelines provided in the curriculum regarding the order of the subnets.

The subnets should be contiguous. There should be no unused address space between subnets.

Provide the most efficient subnet possible for the point$-$to$-$point link between the routers.

Assign the subnets in the order of the number of hosts from the greatest to the least.

Document your design in a table such as the one below.

Configuration Requirements

Note: You will configure addressing on all devices and hosts in the network.

Assign the first usable IP addresses in the appropriate subnets to East for the two LAN links and the WAN link.

Assign the first usable IP addresses in the appropriate subnets to West for the two LANs links. Assign the last usable IP address for the WAN link.

Assign the second usable IP addresses in the appropriate subnets to the switches.

The switch management interface should be reachable from hosts on all of the LANs.

Assign the last usable IP addresses in the appropriate subnets to the hosts.

If the addressing design and implementation are correct, all hosts and devices should be reachable over the network.
