Question: ion 3 : [ 3 0 Points ] mine the equations for slope and deflection of the beam shown by the direct integration method. I

ion 3: [30 Points]

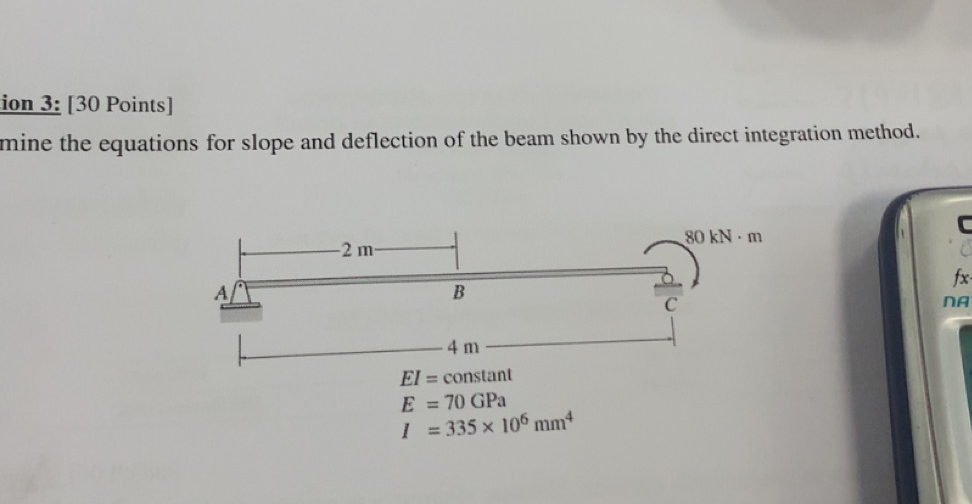

mine the equations for slope and deflection of the beam shown by the direct integration method.
I=335106mm4
ion 3 : [ 3 0 Points ] mine the equations for

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
