is there anything wrongwith this?

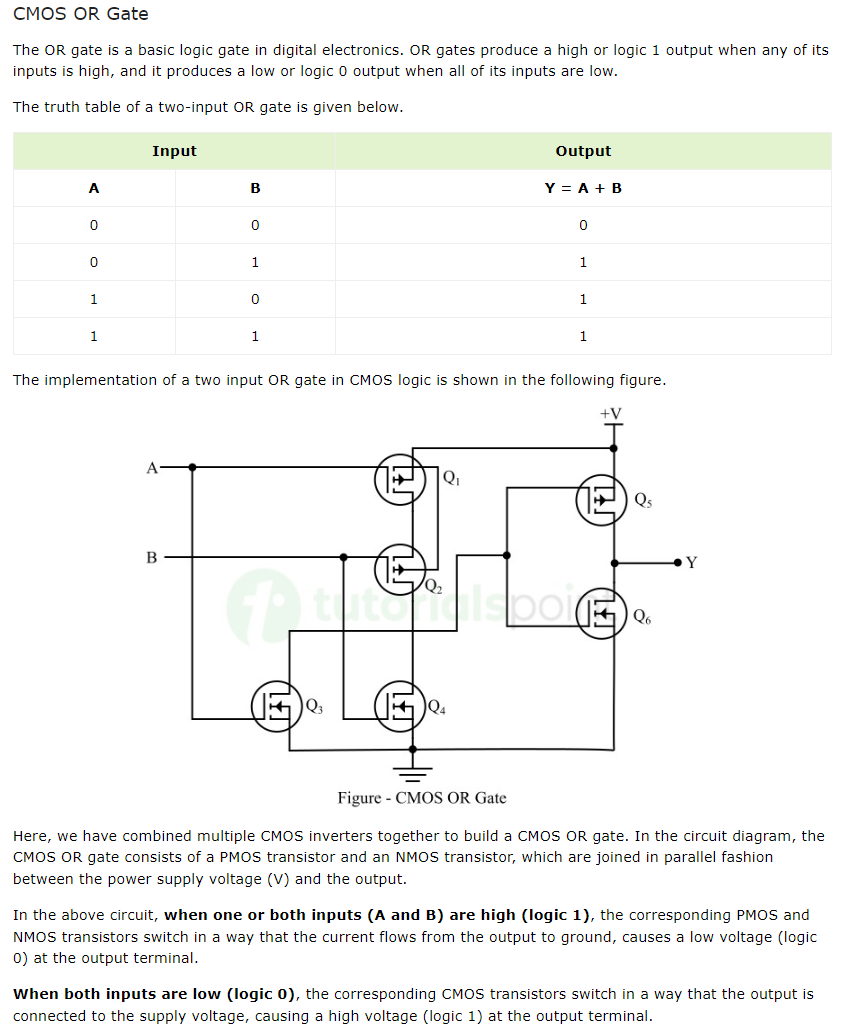

CMOS OR Gate The OR gate is a basic logic gate in digital electronics. OR gates produce a high or logic 1 cutput when any of its inputs is high, and it produces a low or logic 0 cutput when all of its inputs are low. The truth table of a two-input OR gate is given below. Input Output A B Y=A+08B 0 0 0 0 1 1 1 0 1 1 1 1 The implementation of a two input OR gate in CMOS logic is shown in the following figure. Figure - CMOS OR Gate Here, we have combined multiple CMOS inverters together to build a CMOS OR gate. In the circuit diagram, the CMOS OR gate consists of a PMOS transistor and an NMOS transistor, which are joined in parallel fashicn between the power supply voltage (V) and the output. In the above circuit, when one or both inputs (A and B) are high (logic 1}, the corresponding PMOS and NMQS transistors switch in a way that the current flows from the output to ground, causes a low voltage (logic 0} at the output terminal. When both inputs are low (logic 0), the correspending CMOS transistors switch in a way that the output is connected to the supply voltage, causing a high voltage (logic 1) at the output terminal
