Question: Isosceles triangle gate AB below is hinged at A and weighs 1 5 0 0 N . What horizontal force magnitude P is required at

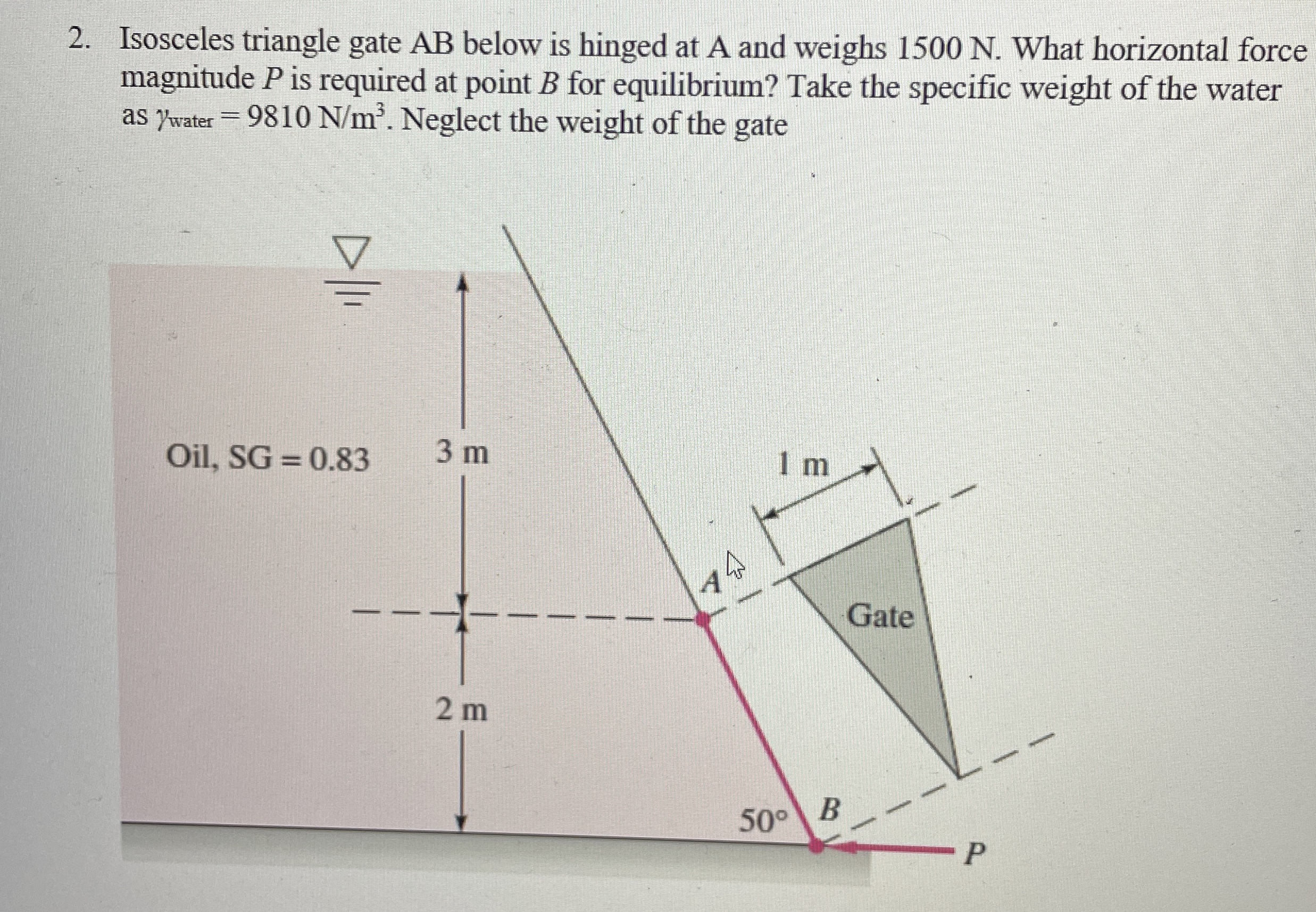

Isosceles triangle gate AB below is hinged at A and weighs 1500 N . What horizontal force magnitude P is required at point B for equilibrium? Take the specific weight of the water as water=9810Nm3. Neglect the weight of the gate
Isosceles triangle gate AB below is hinged at A

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Civil Engineering Questions!

Q:

Isosceles triangle gate AB in Fig. P2.68 is hinged at A and weighs 1500 N. What horizontal force P is required at point B for equilibrium? 3 m Ou SG-0.83

Q:

Problem 1: Isosceles triangle gate AB in the figure below is hinged at A and weighs 1500 N. What horizontal force P is required at point B for equilibrium? OU SG
