Question: iv . For the given circuit, how much must be value of R 3 to get maximum power? v . A circuit having 3 resistors

iv. For the given circuit, how much must be value of R3 to get maximum power?
v. A circuit having 3 resistors in series with values R1=R,R2=2R and R3=3R. Voltage drop across R2 is 20 V . What will be voltage across the battery?
vi. A circuit having 3 resistors in parallel with values R1=R,R2=2R and R3=3R. Voltage drop across R2 is 20 V . What will be total current in the circuit?
vii. A wire having current of 10 A passing in 1 hour, how much charge in the wire?
viii. A wire having current of 10A passing in 1 hour, how much Energy in the wire if the voltage across wire is 20 V ?

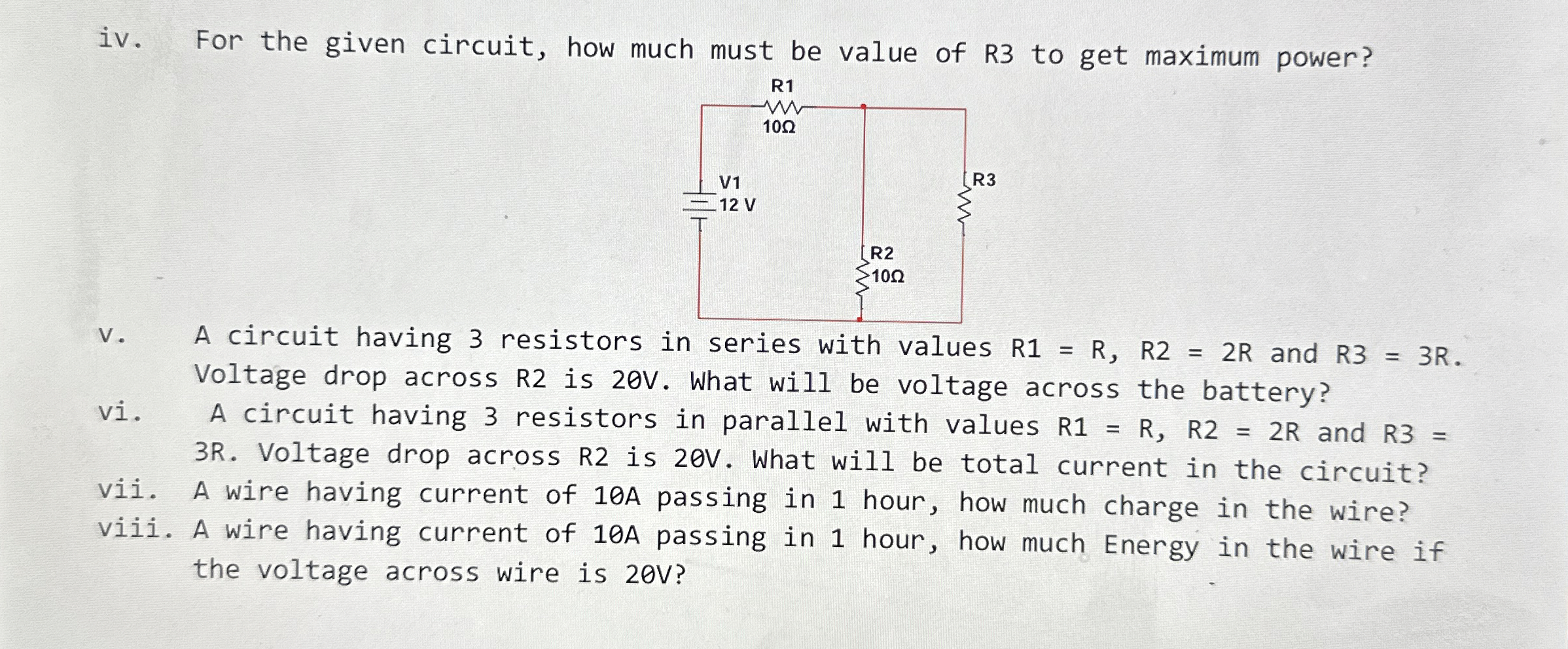

iv . For the given circuit, how much must be
