Question: .! J 2 S 3 SUPPLY B SPRING NEGR PART NE/MODEL N TYPE 12 IMAV-3 3-WAY VAL 3MAT-30 AIR TANK. 4 MPA-3 ACTUATOR SIMFC-2

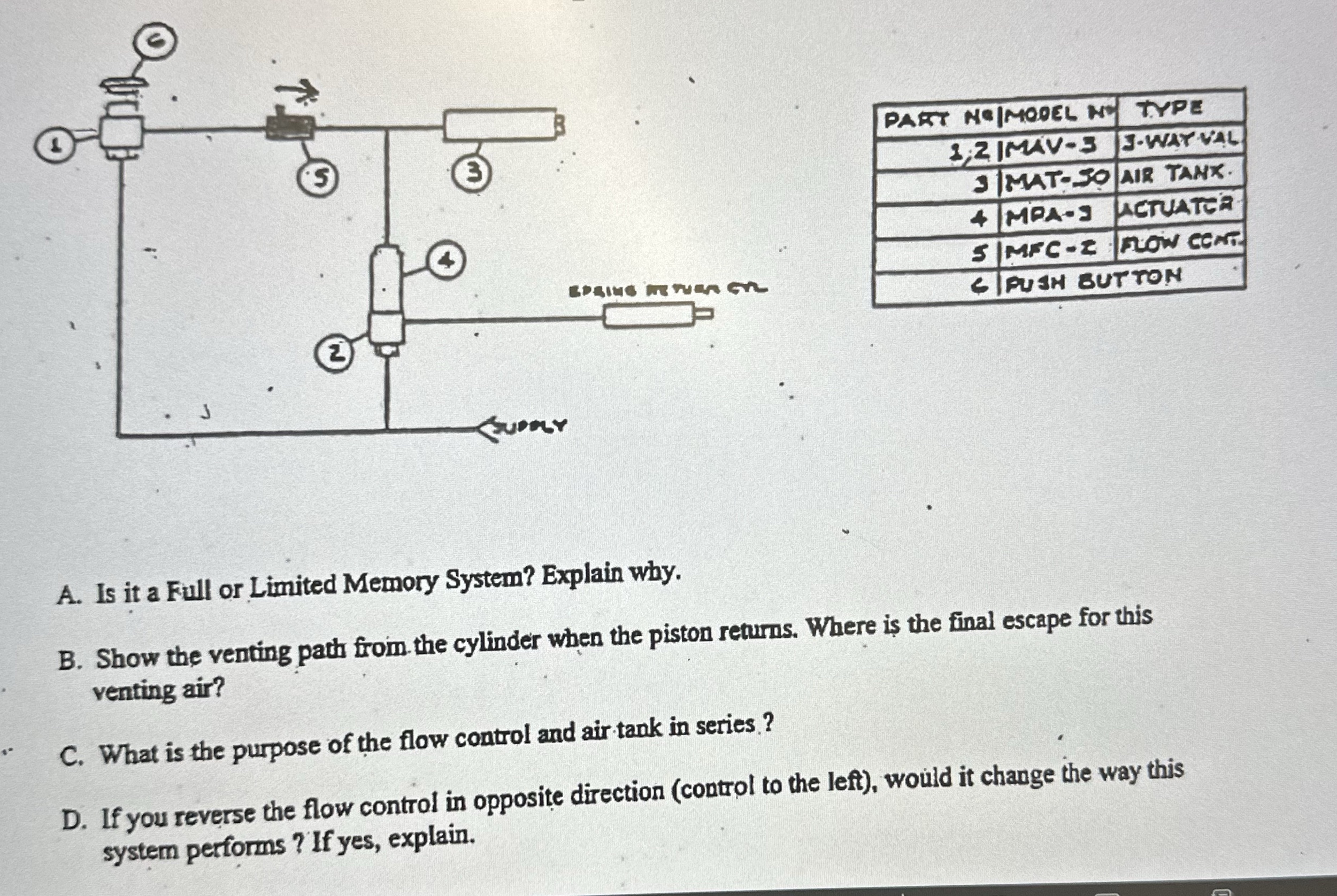

.! J 2 S 3 SUPPLY B SPRING NEGR PART NE/MODEL N TYPE 12 IMAV-3 3-WAY VAL 3MAT-30 AIR TANK. 4 MPA-3 ACTUATOR SIMFC-2 FLOW CONT PUSH BUTTON A. Is it a Full or Limited Memory System? Explain why. B. Show the venting path from the cylinder when the piston returns. Where is the final escape for this venting air? C. What is the purpose of the flow control and air tank in series? D. If you reverse the flow control in opposite direction (control to the left), would it change the way this system performs? If yes, explain.
