Question: j . The system has four inputs, a , b , c , and d , and one output, f . The last three inputs

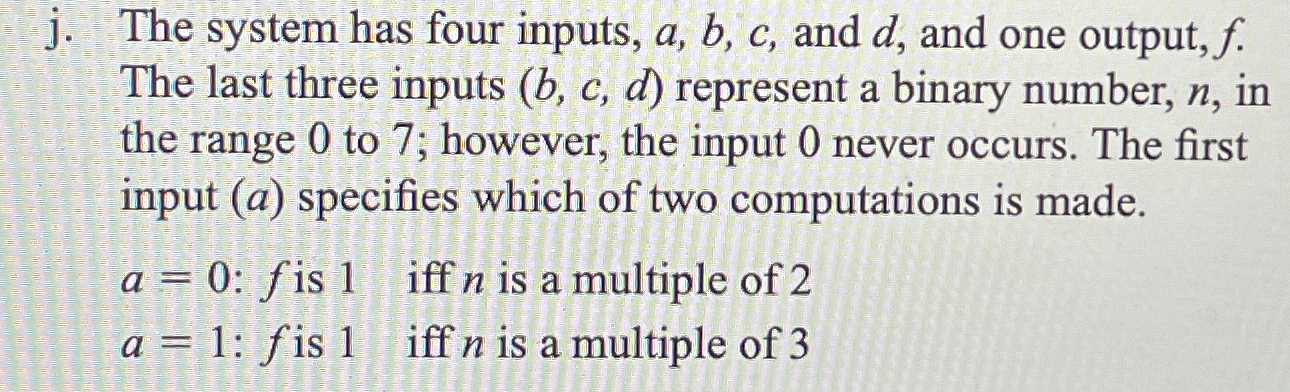

j. The system has four inputs, a,b,c, and d, and one output, f.
The last three inputs (b,c,d) represent a binary number, n, in
the range 0 to 7 ; however, the input 0 never occurs. The first
input (a) specifies which of two computations is made.
a=0:f is 1 iff n is a multiple of 2
a=1:f is 1 iff n is a multiple of 3
j . The system has four inputs, a , b , c , and d
