Question: Jetermine the force in member ( A E ) of the loaded truss. The force is positive if in tension, negative if in

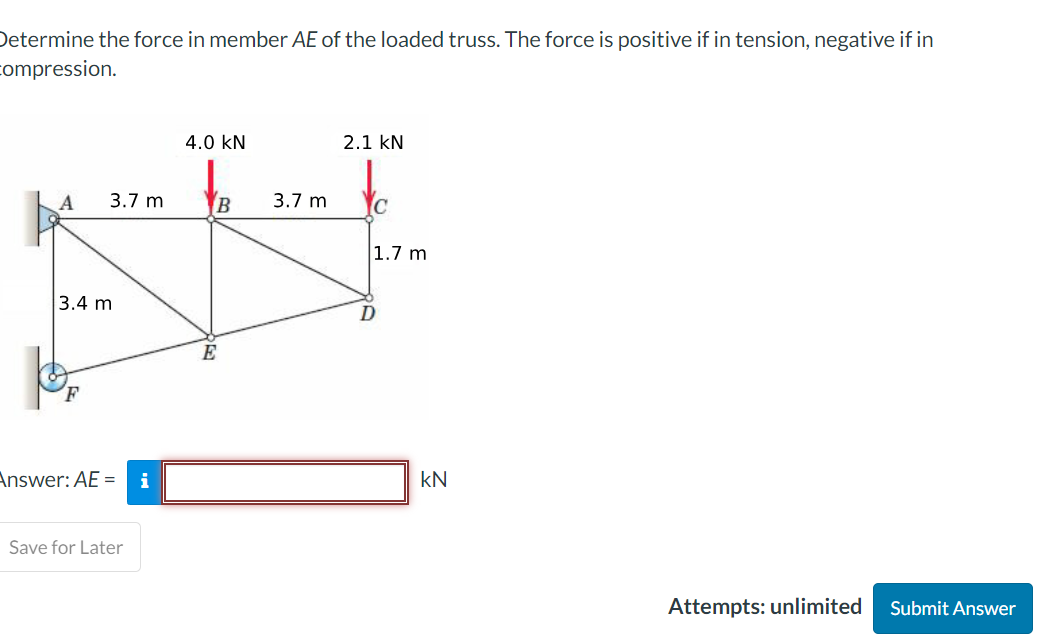

Jetermine the force in member \( A E \) of the loaded truss. The force is positive if in tension, negative if in ompression.
Inswer: \( A E=\) kN
Jetermine the force in member \ ( A E \ ) of the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock

Students Have Also Explored These Related Mechanical Engineering Questions!

Q:

Determine the force in member \ ( A E \ ) of the loaded truss. The force is positive if in tension, negative if in compression. Determine the force in member \ ( A E \ ) of the loaded truss. The...

Q:

Determine the force in member \ ( A E \ ) of the loaded truss. The force is positive if in tension, negative if in compression. Answer: \ ( A E = \ ) kN

Q:

Determine the force in member \ ( A E \ ) of the loaded truss. The force is positive if in tension, negative if in compression. Detiermirm thu forces Answer: AE - kN

Q:

Determine the force in member \ ( B E \ ) of the loaded truss. The force is positive if in tension, negative if in compression. Answer: BE = _ _ _ L

Q:

Determine the force in member \ ( A E \ ) of the loaded truss. The force is positive if in tension, negative if in compression.

Q:

Determine the force in member \ ( B E \ ) of the loaded truss. Enter a positive number if in tension, negative if in compression. Answer: BE - L

Q:

Consider the truss shown in ( Figure 1 ) . Suppose that \ ( F _ { 1 } = 6 \ mathrm { kN } \ ) and \ ( F _ { 2 } = 9 \ mathrm { kN } \ ) . Figure Part A Determine the force in member \ ( B E \ ) and...

Q:

Determine the force in member \ ( B C \ ) of the loaded truss. We will cut through \ ( B C , C F \ ) , and \ ( E F \ ) and then isolate the section to the right of the cut. The free - body diagram of...

Q:

Determine the force in member \ ( F E \ ) of the truss. Determine the force in members \ ( F E , F B \ ) , and \ ( B C \ ) of the truss and state if the members are in tension or compression. After...
