Question: Problem 2 For the beam structure shown in the Figure below. Determine ( a ) the moment about point A of each of the three

Problem 2

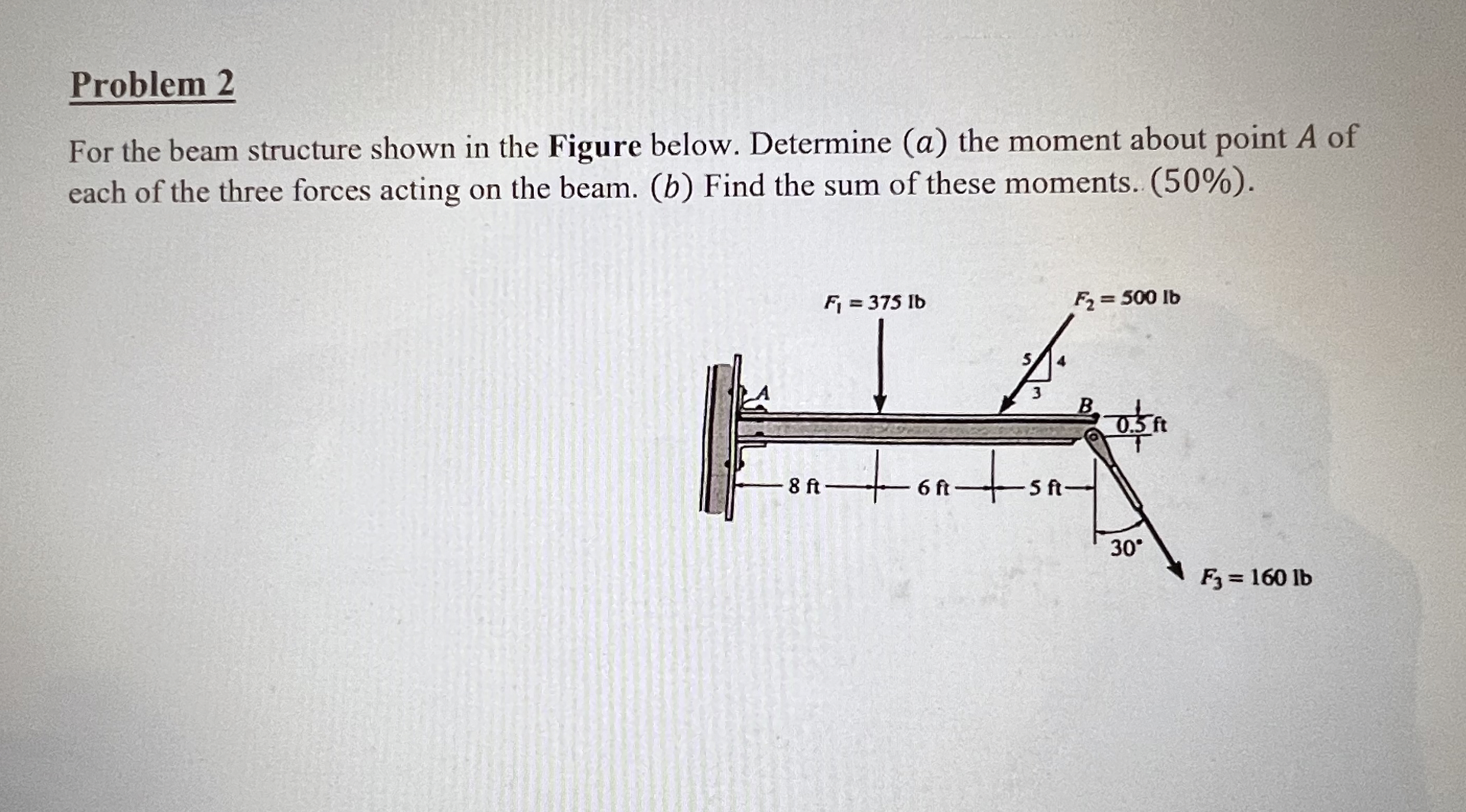

For the beam structure shown in the Figure below. Determine (a) the moment about point A of
each of the three forces acting on the beam. (b) Find the sum of these moments. (50%).
Problem 2 For the beam structure shown in the

Step by Step Solution

There are 3 Steps involved in it

1 Expert Approved Answer
Step: 1 Unlock blur-text-image
Question Has Been Solved by an Expert!

Get step-by-step solutions from verified subject matter experts

Step: 2 Unlock
Step: 3 Unlock
